PRODUCT DESCRIPTION
Diamond Concrete Shaver/Rectifier with hydrostatic Drive, self-propelled.
FIELD OF APPLICATIONS
- Renovation of industrial floors
- Removal of coatings, epoxy resin screed
- Grooving of concrete for anti-slip on ramps and side-walks
- Profiling of a sound floor for coating
- Reducing levels correcting concrete joints
- Lippage removal
- Tolerance works
- Eliminate trip hazards
Precision surface correction on concrete floor
Adjustable cutting depth
PROCEDURE

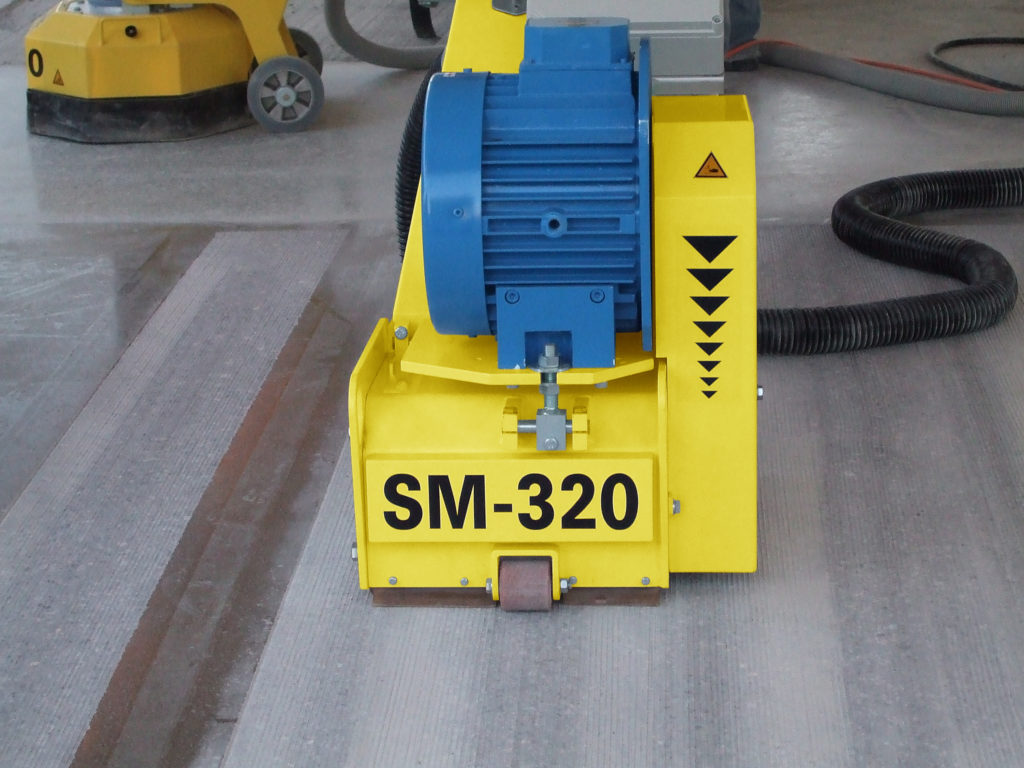

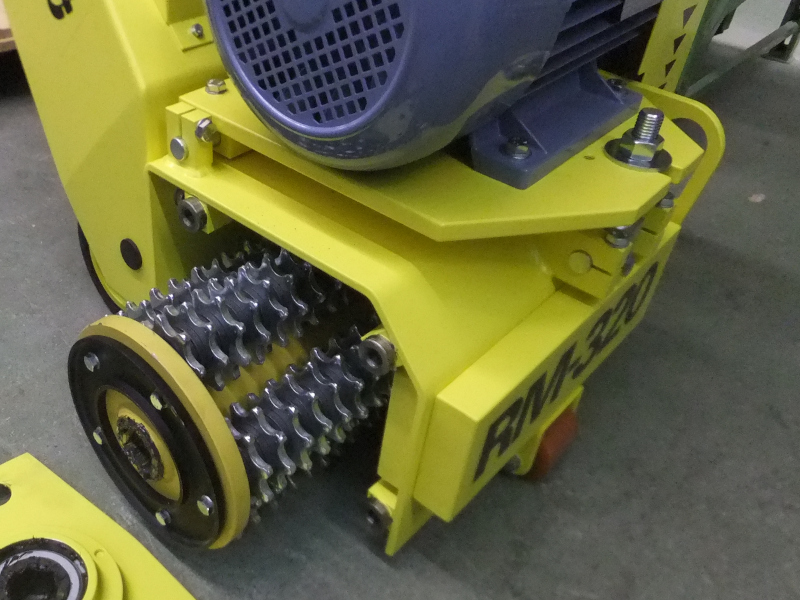

The Shave-Master SM-320 works on the same principle as the RM-320. The drum is enclosed in the main body of the machine and rotates at high speed. The difference is that the drum is made up of a number of “Diamond Blades” which produce fast and efficient results on different surfaces.
TOOLS / ACCESSOIRES
According to the job the drums can be assembled in different ways. With compact assembling whole layers can be removed. Fully adjustable depth controls with Diamond blades Ø 250 mm up to approx. 12 mm (1/2″) deep. And with Diamond Blades Ø 275 mm up to approx. 25 mm (1″) deep.

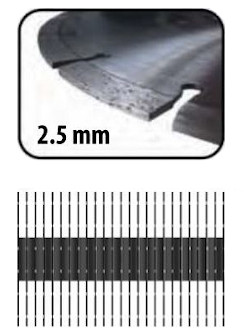

Blade: 2.5 mm
Assembling with spacers and 24 Diamond Blades
Ø 250 mm
Compact Assembling with 48 Diamond Blades

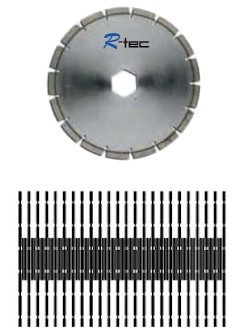

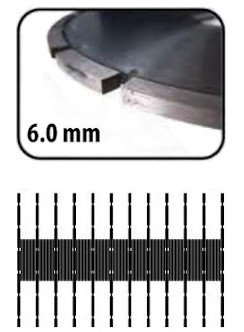

Blade: 6 mm
Assembling with spacers and 12 Diamond Blades
Ø 250 mm
Compact Assembling with 24 Diamond blades
FEATURES / CONSTRUCTION
- Heavy duty welded steel construction.
- Self-propelled hydrostatic power Forward and Reverse drive.
- Integral dust control outlet
- Anti-Vibration handels

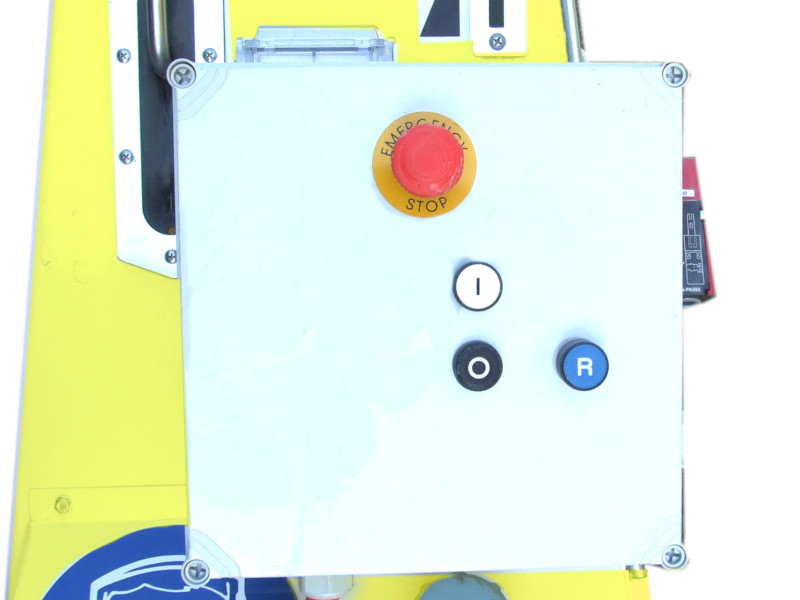

Switch box
ON-OFF Button emergency Stop, control supply voltage

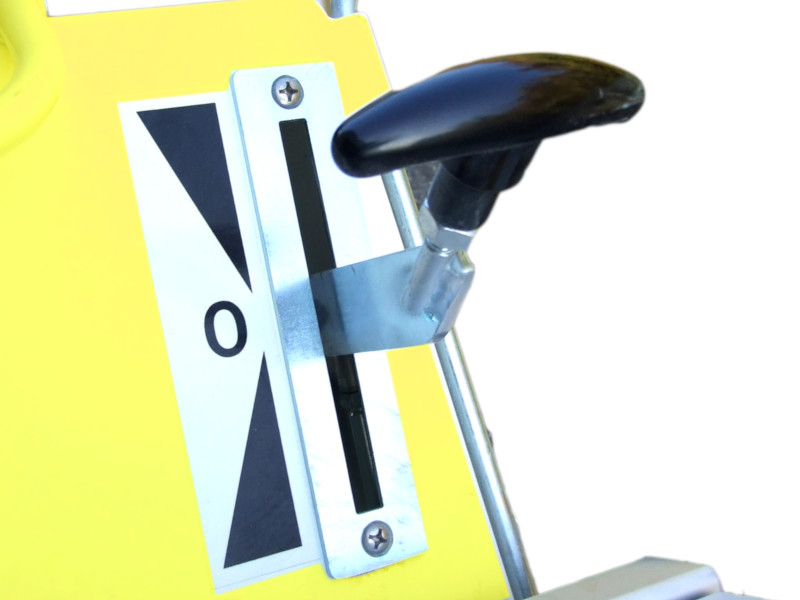

Speed control
Forward and reverse, variable drive speed
Drum control
Single lever for drum engage quick lift

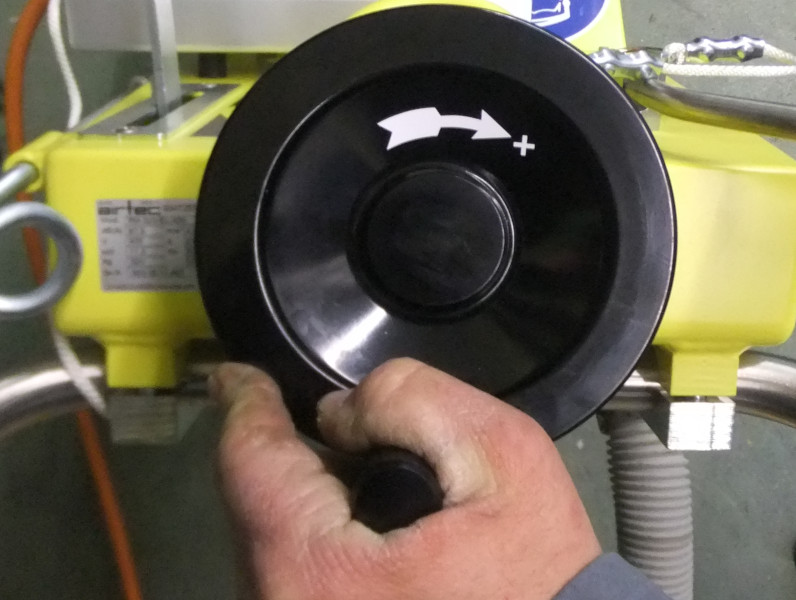

Cutting depth
Micro-Depth control for fine tuning depth of diamond cutter

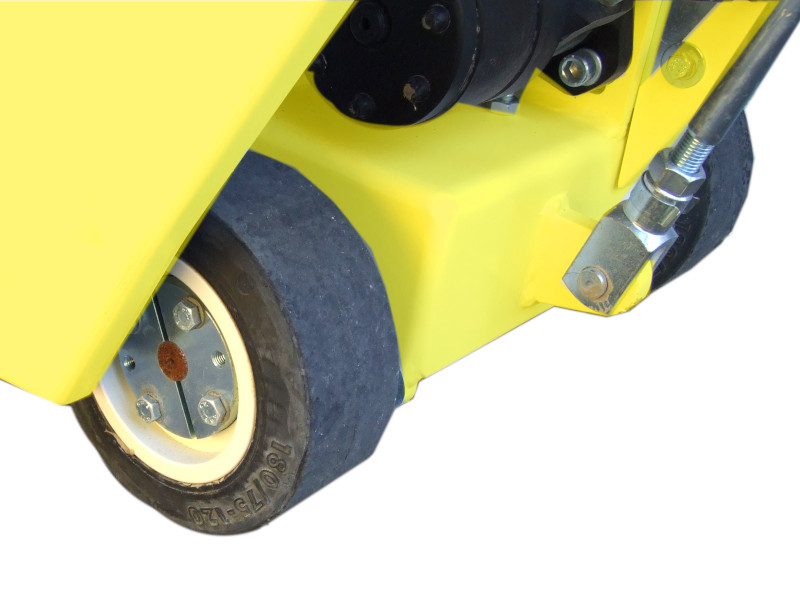

Differential
Unique Wheel Transmission and drive for ON-SPOT U-Turns

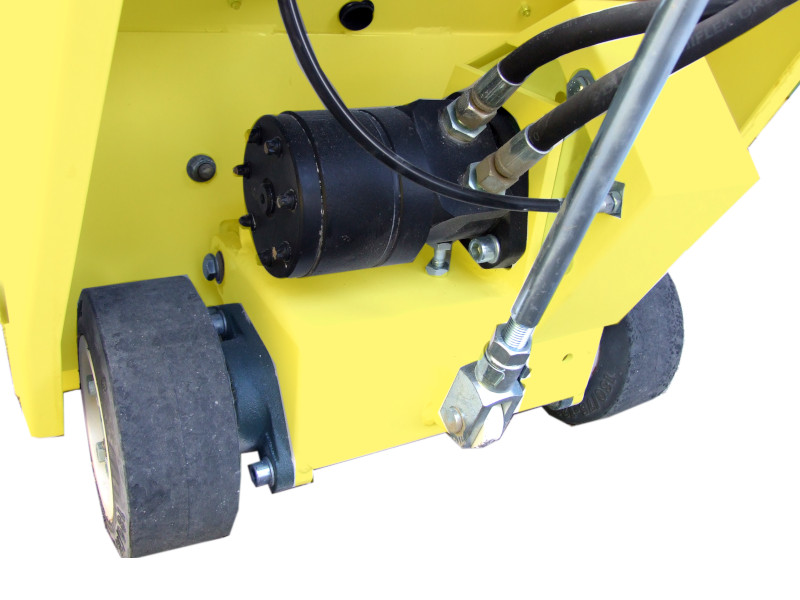

Drive unit
Hydrostatic drive unit completely sealed
Safety

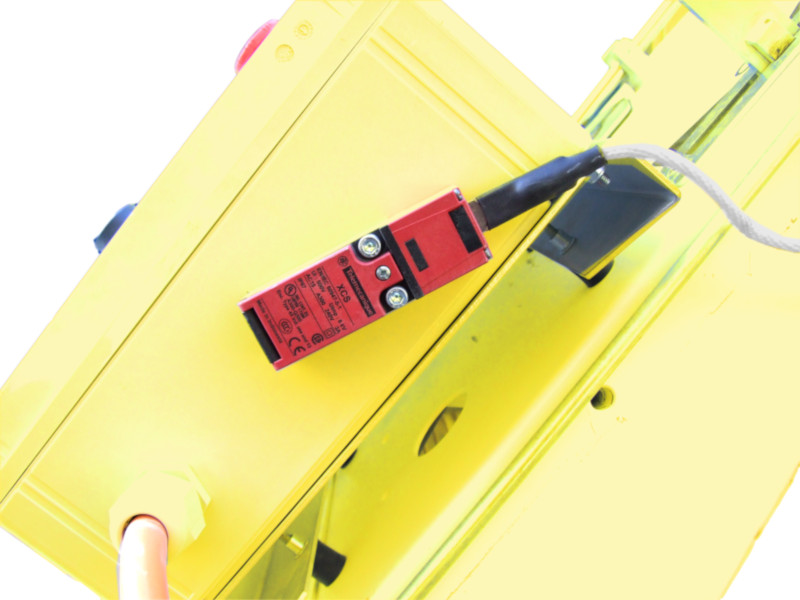

Full safety operating system, Dead-Man-Switch
Dust control
Vacuum connection for almost dust-free operation
OPTION
Add-on

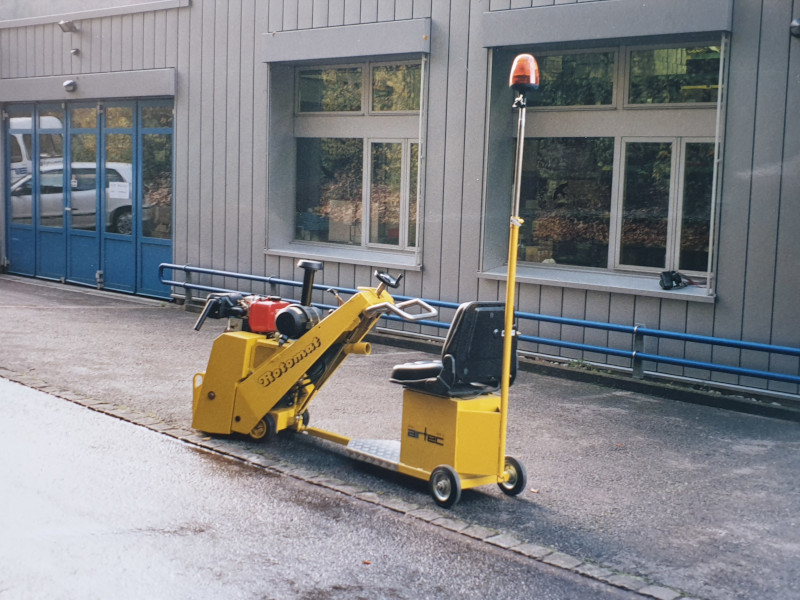

Roughening larger concrete road surfaces with add-on Riding Car.
Upgrade
SM-320 with 15 kW can be upgraded for the use with tungsten pointed Cutters.
TECHNICAL DATA

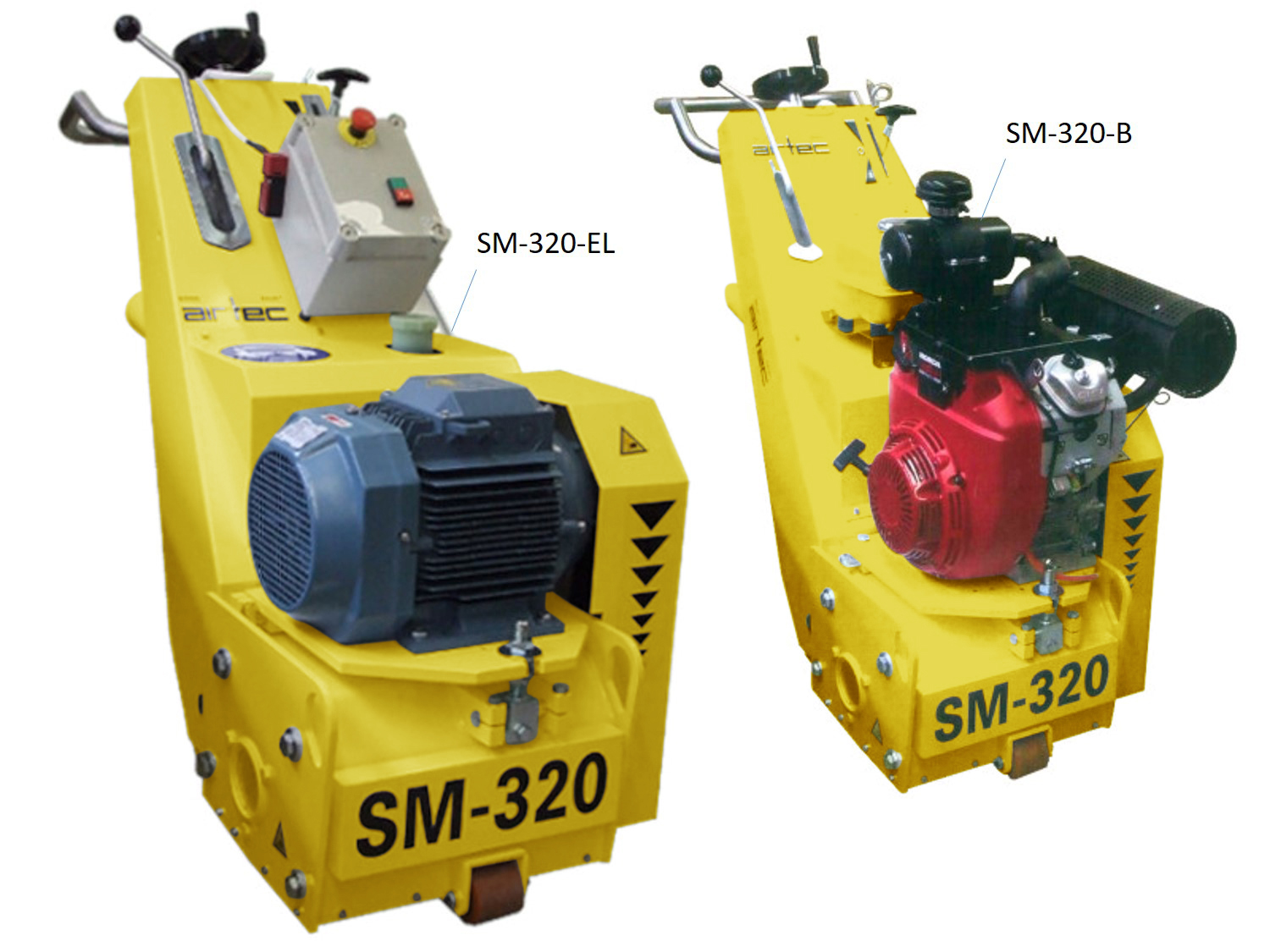

SM-320-EL-11
| Motor | 11 kW |
| Voltage | 400V / 50 Hz, 32A |
| Weight | 320 kg |
SM-320-EL-12.6
| Motor | 12.6 kW |
| Voltage | 460V / 60 Hz, 32A |
| Weight | 320 kg |
SM-320-EL-15
| Motor | 15 kW |
| Voltage | 400V / 50 Hz, 32A |
| Weight | 330 kg |
SM-320-EL-18
| Motor | 18 kW |
| Voltage | 440V / 60 Hz, 32A |
| Weight | 375 kg |
SM-320-B
| Motor | Honda Gasonline |
| Power | 20 HP |
| Weight | 320 kg |
| Variation | Motor | Voltage | Weight |
| SM-320-B | Honda Gasoline | 20 HP | 330 kg |
| SM-320-EL-11 | 11 kW | 400V / 50 Hz, 32A | 330 kg |
| SM-320-EL-12.6 | 12.6 kW | 460V / 60 Hz, 32A | 330 kg |
| SM-320-EL-15 | 15 kW | 400V / 50 Hz, 32A | 339 kg |
| SM-320-EL-18 | 18 kW | 440V / 60 Hz, 32A | 339 kg |
All Machines
| Working Width | 320 mm |
| Drive | hydrostatic, self-propelled |
| Dimensions | 58 x 140 x 100 cm |
| Delivery content | SM-320 with 1 Drum |
| 24 Diamond Discs SM-320-910 (2.5mm) incl. 69 spacers | |
| Operating manual and spare parts list | |
| Audit Log und Warranty Certificate |
