Beschreibung
PRODUCT DESCRIPTION

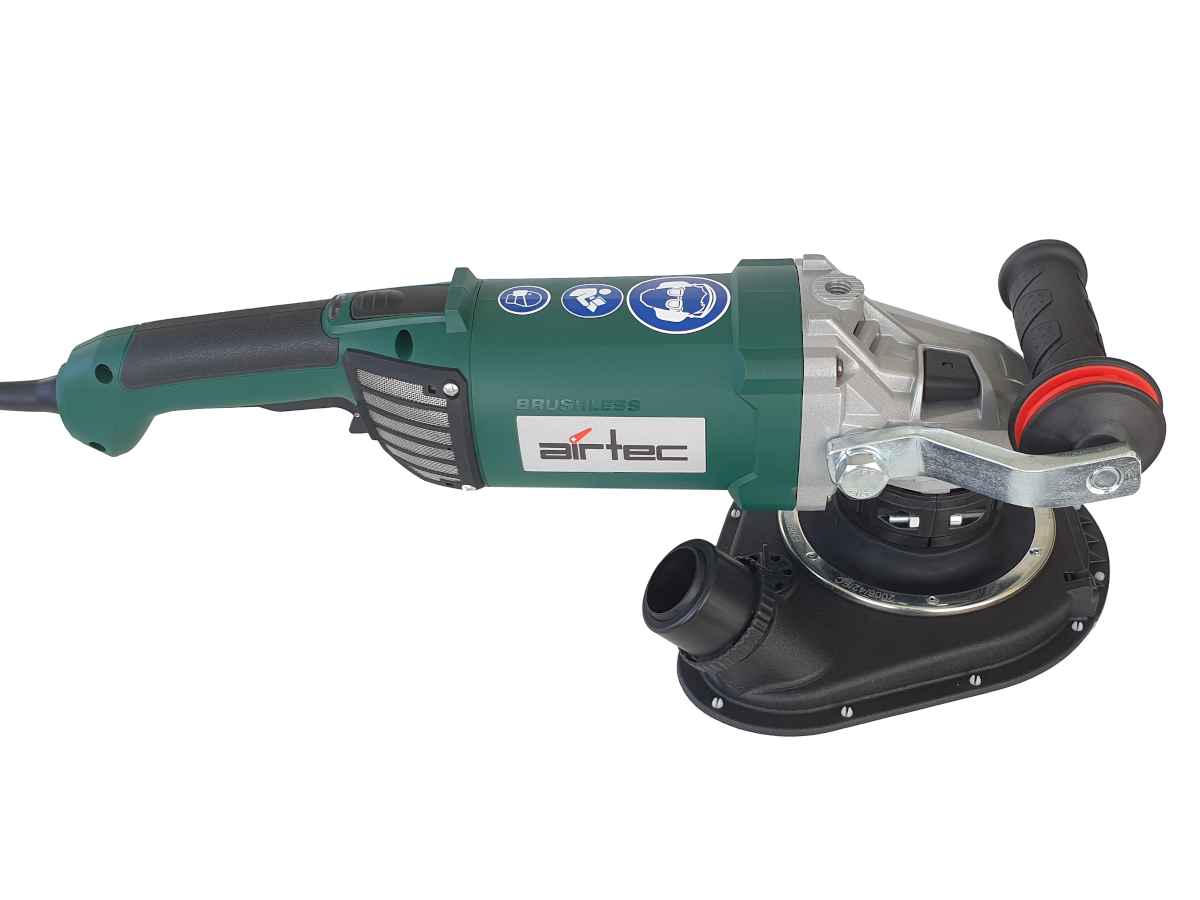

The Handheld Grinder BS-180-EL-P electric is a brushless „POWER UNIT“ designed to achieve the highest standard in Floor Grinding on Concrete and natural Stone Surfaces. Where you have difficulties to reach areas like bathrooms, kitchens, washing rooms but also ramps and small garages. With 2.6 kW and the New Innovative Dust-Hood is a real Power Unit for Professionals. Ideal for renovation work where space is tight.
FIELD OF APPLICATIONS
- Removal of adhesives and rubber deposits, mortar, asphaltic gypsum, Latex, acrylic coatings, Epoxy, Painting
- Grinding of small Surfaces, Edges, Corners and Stairs
- Stripping Markings, Irregularities, Adhesives
PROCEDURE
Compact and light weight single disc grinder for surface preparation. Very effective and easy to operate. Very powerful Tool fitted with Suction Port.

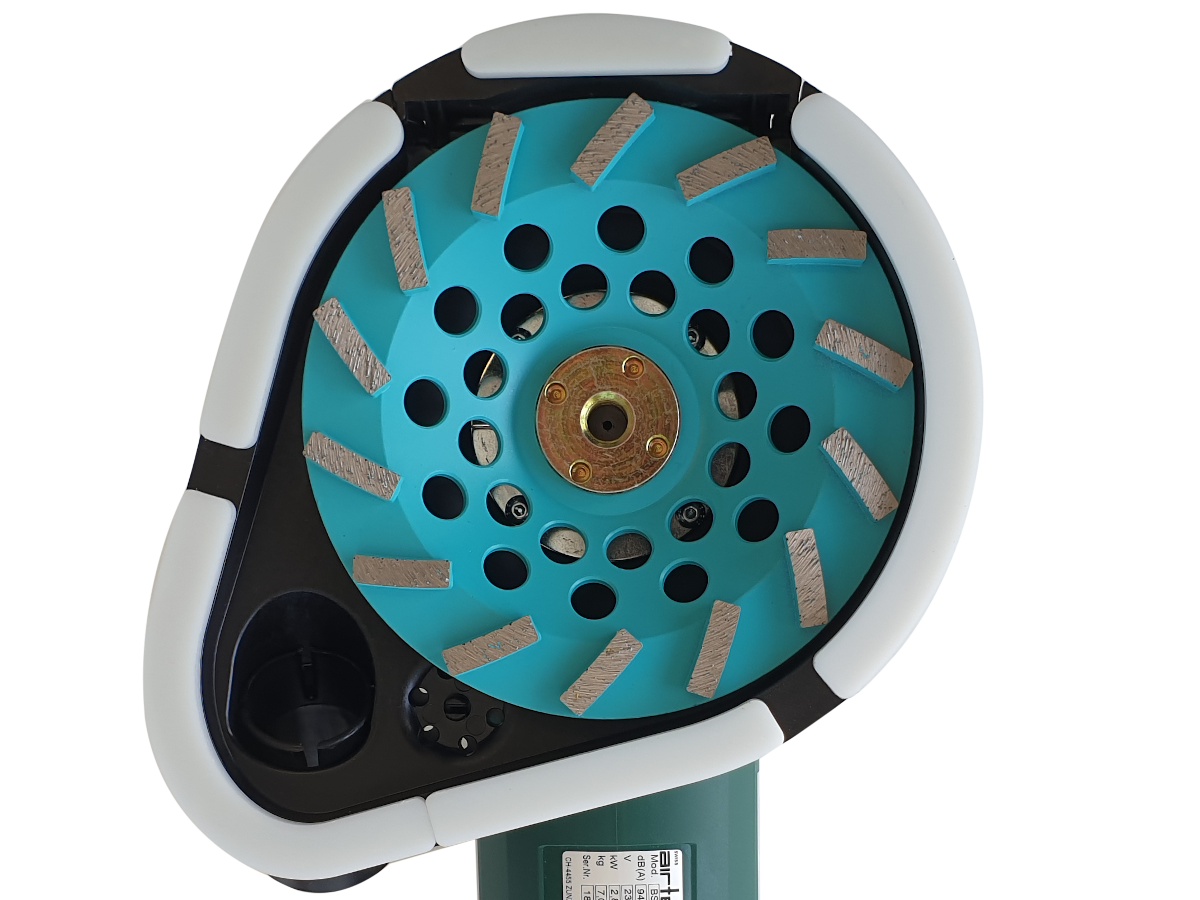

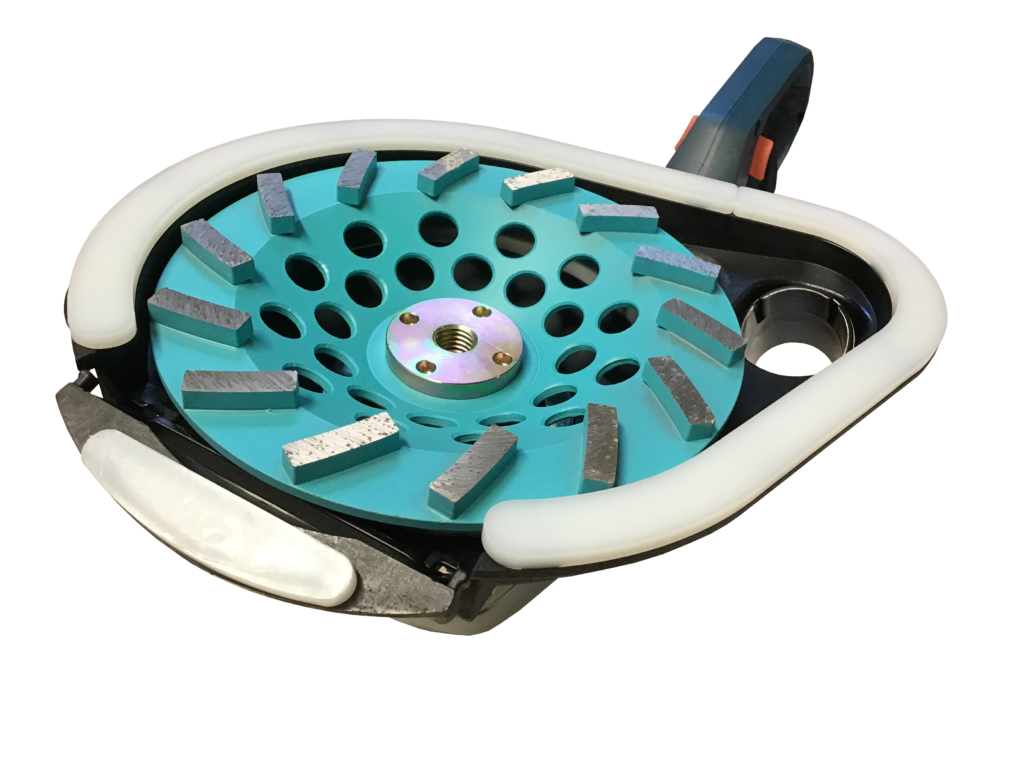

Special Dust Hood BS-180-199 with flip top front for Edge Grinding.
Dust-Hood to protect workers from hazardous material dust. Replaceable Wear Straps.

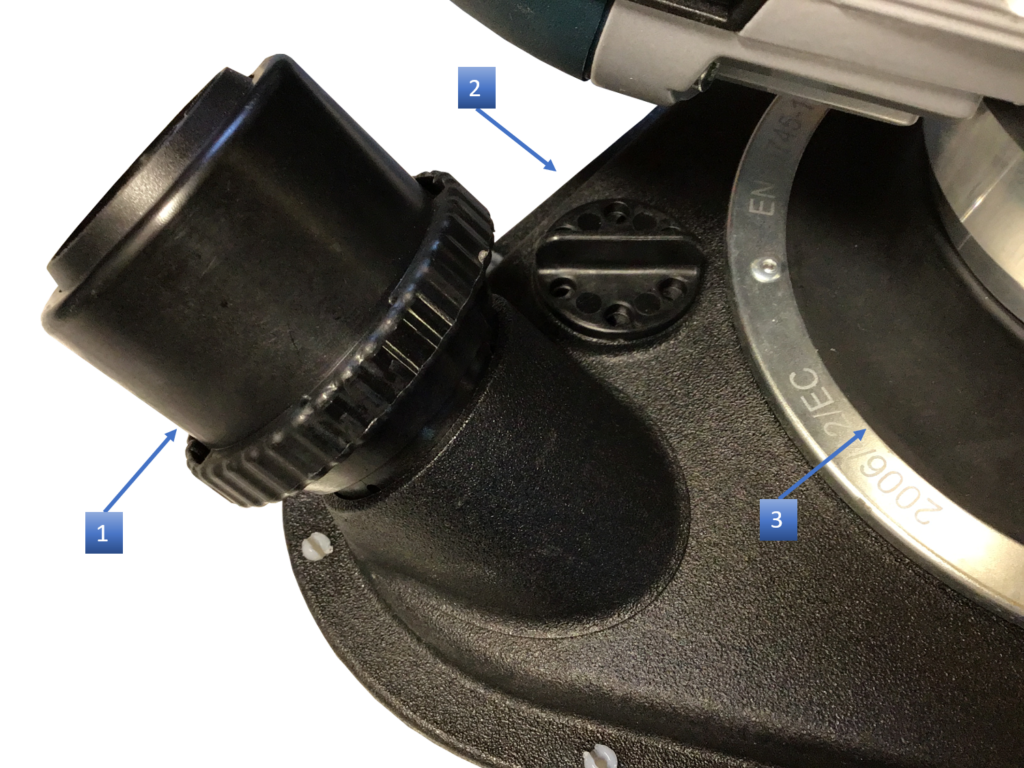

1) Multi Fit Vacuum Cleaner Port
2) Adjustable built in air vent for suction control
3) Self levelling due to Diaphragm for the best surface contact
FEATURES / CONSTRUCTION
- Anti-Vibration Handle
- Sturdy, flexible Dust Hood
- Vacuum Port
- Brushles electric Motor, almost Maintenance-Free, Full Power and Long Live
- Ideal for Dry Grinding
- Compact design, Easy to use.
OPTION

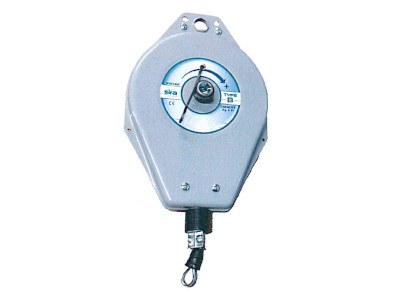

Balancer for easy overhead work. Wall cleaning and maintenance.
TECHNICAL DATA
| Power | 2.6 kW |
| Voltage | 230 V / 50 Hz, 16A |
| Motor Speed | 2’200 rpm |
| Grinding Plate | 180 mm |
| Weight | 6.7 kg |
| Delivery content | Handheld Grinder AT-891-001 |
| Special Dust Hood with Opening for Edge Grinding BS-180-199 | |
| Anti-Vibration Handle | |
| Diamond Disc BS-180-045-1 | |
| Face Spanner Wrench BS-125-058 | |
| Operating manual and spare parts list |
