PRODUCT DESCRIPTION

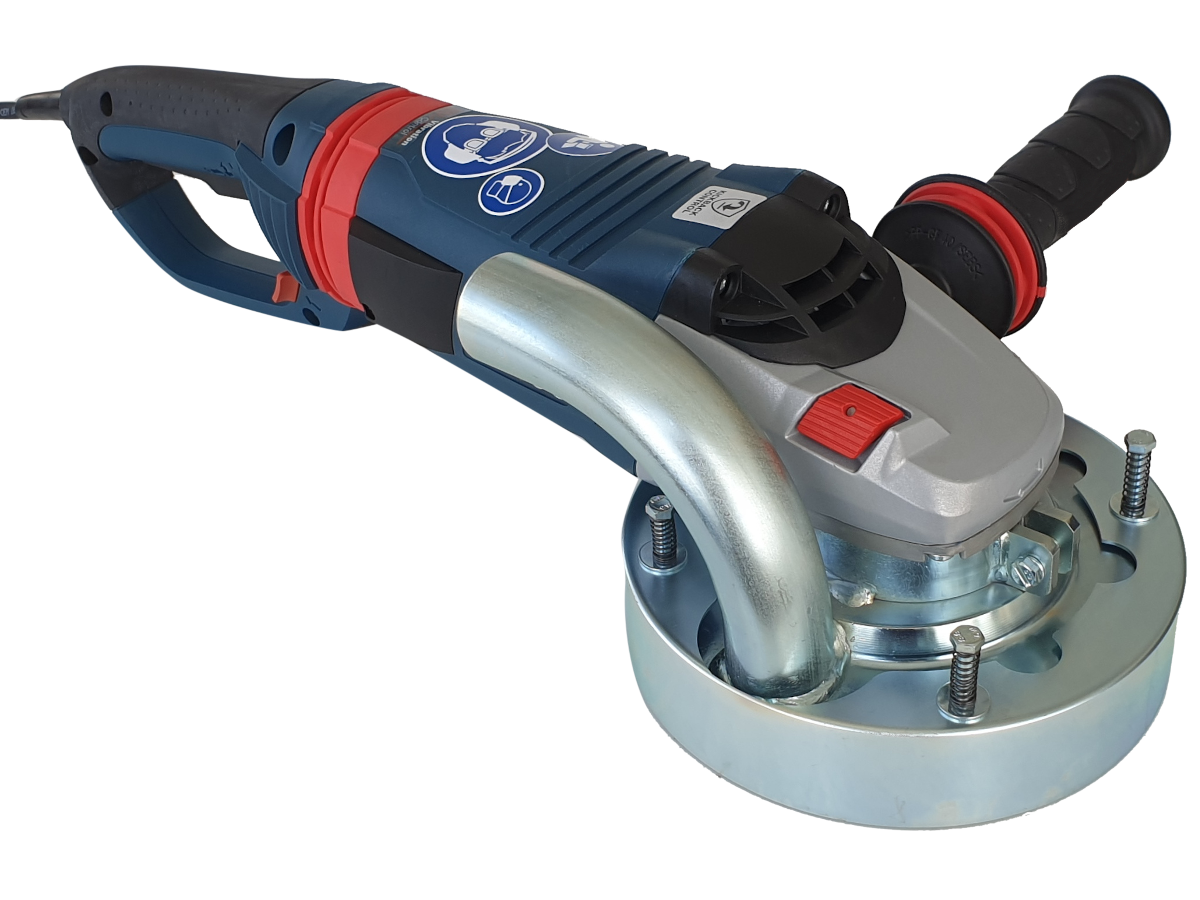

The Hand Grinder BS-180-EL-045 electric is a „POWER UNIT“ designed to achieve the highest standard in Floor Grinding on Concrete and Natural Stone Surfaces. Also for Areas difficult to reach such as bathrooms, kitchens, washing rooms but also ramps and small garages.
FIELD OF APPLICATIONS
- Removal of adhesives and rubber deposits, mortar, asphaltic gypsum, Latex, acrylic coatings, Epoxy
- Grinding of small Surfaces, Edges, Corners and Stairs
- Stripping Markings, Irregularities, Adhesives
PROCEDURE
Compact and light weight Single Disc Diamond Grinder for surface preparation. Very effective and easy to operate. Very powerful Tool fitted with suction Port and spring-actuated Dust Hood for Best Floor Contact and Dust Suction.
180 mm Diamond Disc BS-180-045-1 for concrete surfacing, removing of remnants.

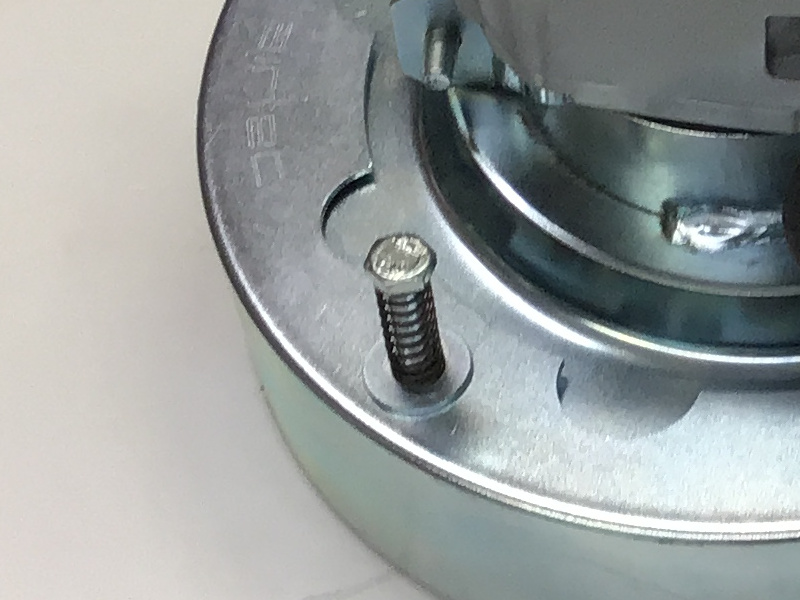

Spring-actuated Steel Dust Hood for best Floor Contact and Dust Suction.
FEATURES / CONSTRUCTION
- Anti-Vibration handle
- Steel Dust Hood with Suction Port for Dust Extraction
- Vacuum Port

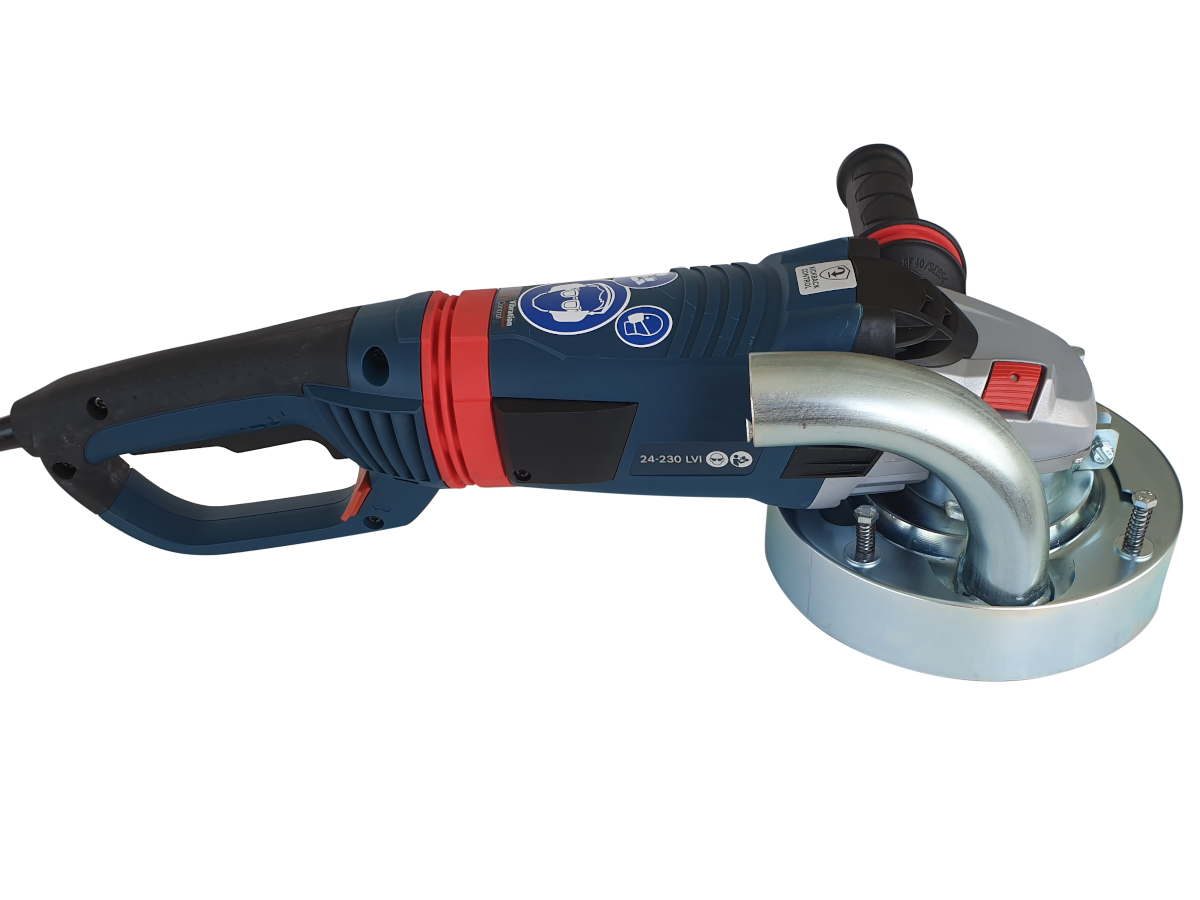

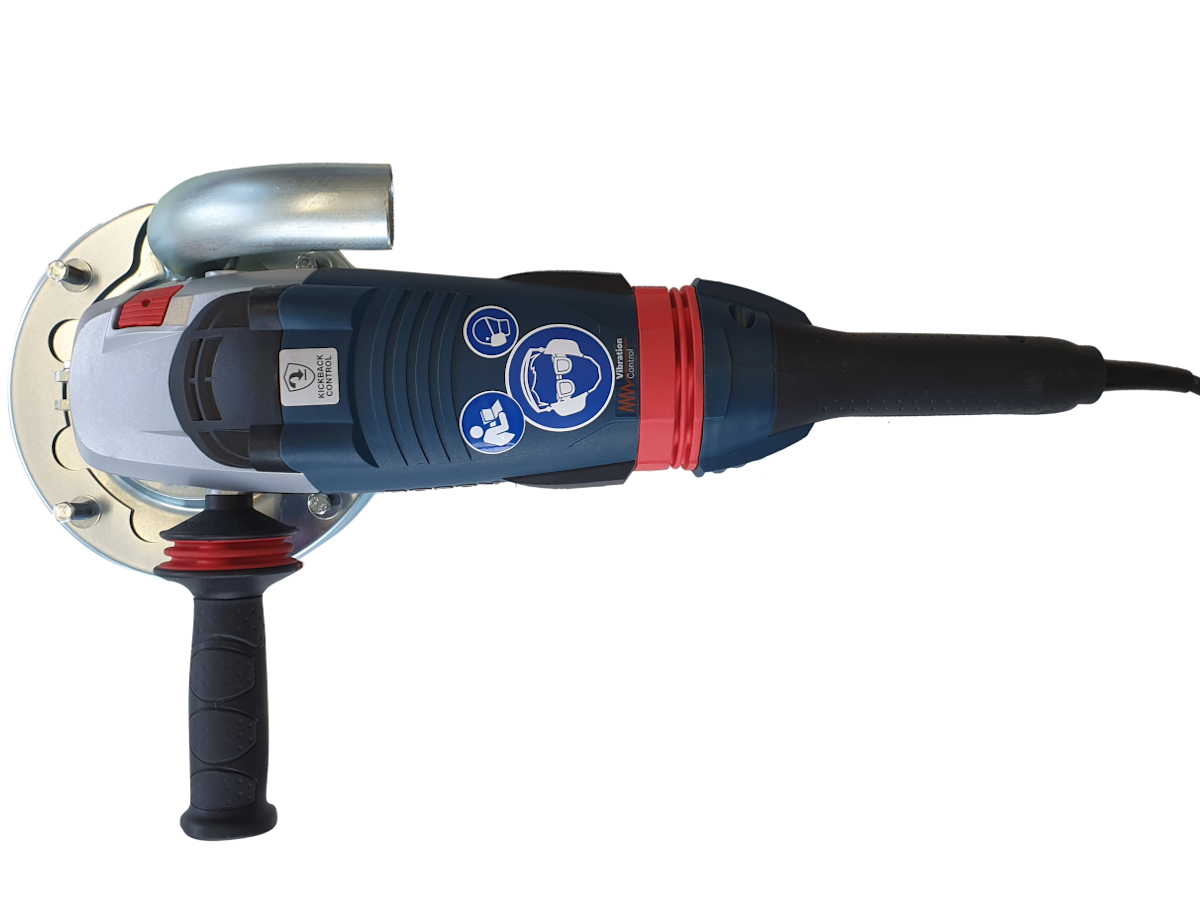

- Rotation of the Main-Handle
OPTION
Balancer for easy overhead work. Wall cleaning and maintenance.
TECHNICAL DATA
| Power | 2.4 kW |
| Voltage | 230 V / 50 Hz, 16A |
| Motor Speed | 6’600 rpm |
| Grinding Plate | 180 mm |
| Weight | 8 kg |
| Delivery Content | Handheld Grinder BS-180-005 with rotating Main-Handle |
| Special Dust Hood spring-actuated BS-180-600 | |
| Anti-Vibration Handle | |
| Diamond Disc BS-180-045-1 | |
| Face Spanner Wrench BS-125-058 | |
| Operating manual and spare parts list |
