PRODUCT DESCRIPTION

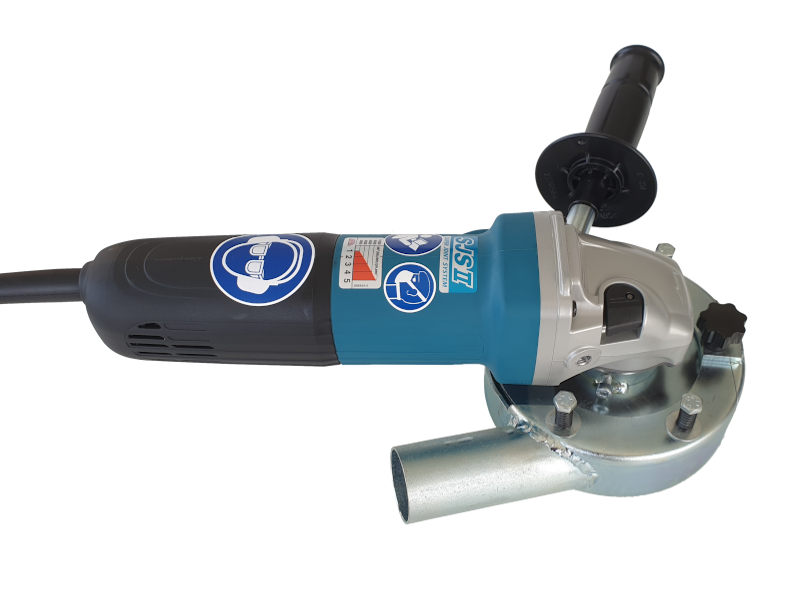

The Hand Grinder BS-125-EL-045-1 electric is a „COMPACT POWER UNIT“ designed to achieve the highest standard in Floor Grinding on Concrete and natural Stone Surfaces. Where youe have difficulties to reach areas like bathrooms, kitchens, washing rooms. The great flexibility and the tool weight of only 3.6 kg are interesting and helpful assets.
FIELD OF APPLICATIONS
- Removal of adhesives and rubber deposits, mortar, asphaltic gypsum, Latex, acrylic coatings, Epoxy
- Grinding of small Surfaces, Edges, Corners and Stairs
PROCEDURE
Compact and light weight single disc grinder for surface preparation. Very effective and easy to operate.

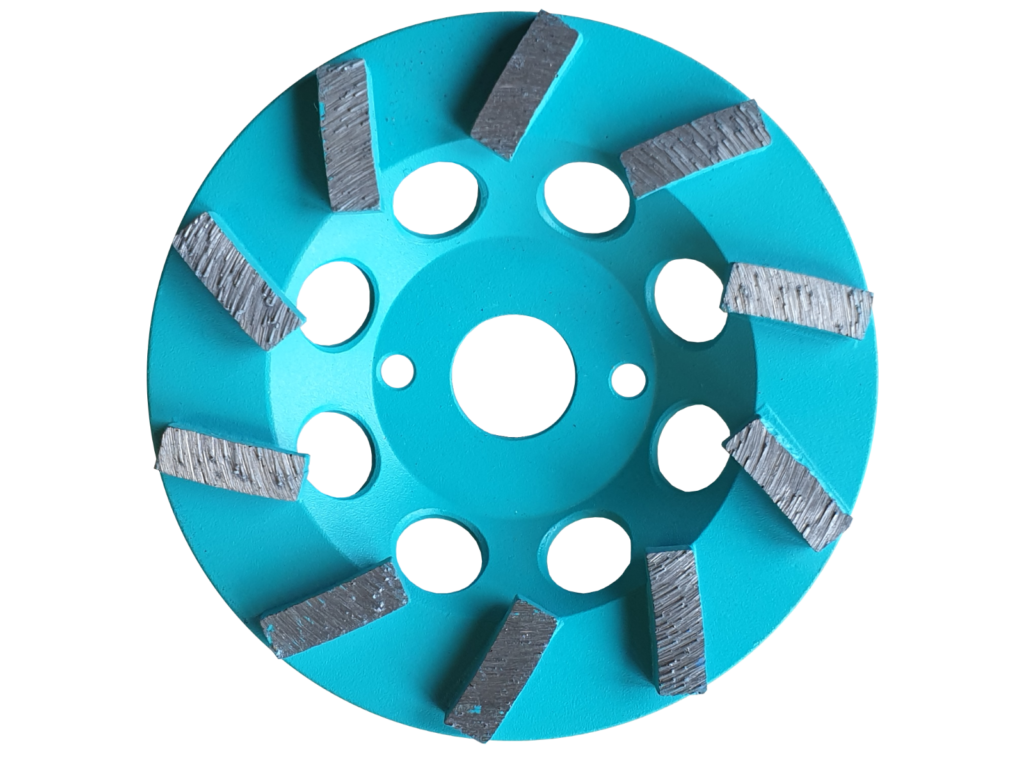

125 mm Diamond Disc for concrete surfacing, removing of remnants.
Special Steel Dust-Hood, Spring-Acuated BS-125-103.
FEATURES / CONSTRUCTION

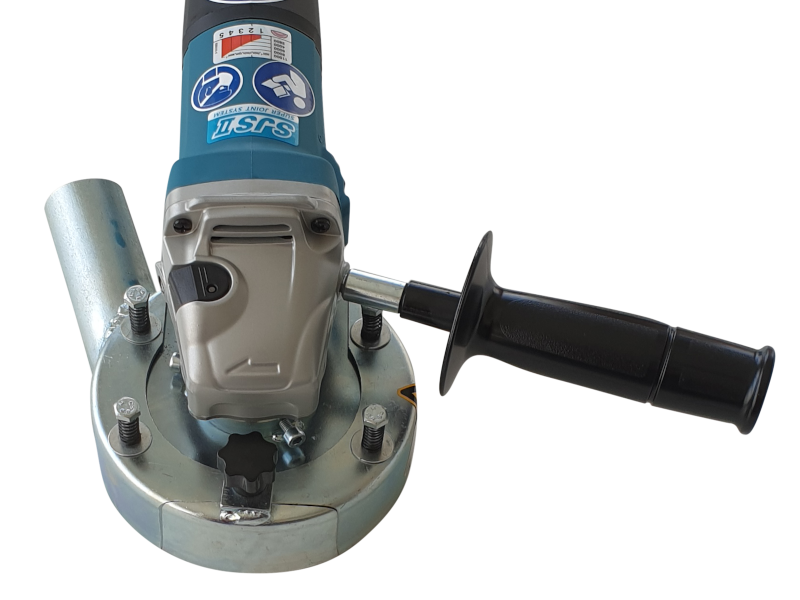

- Anti-Vibration handle

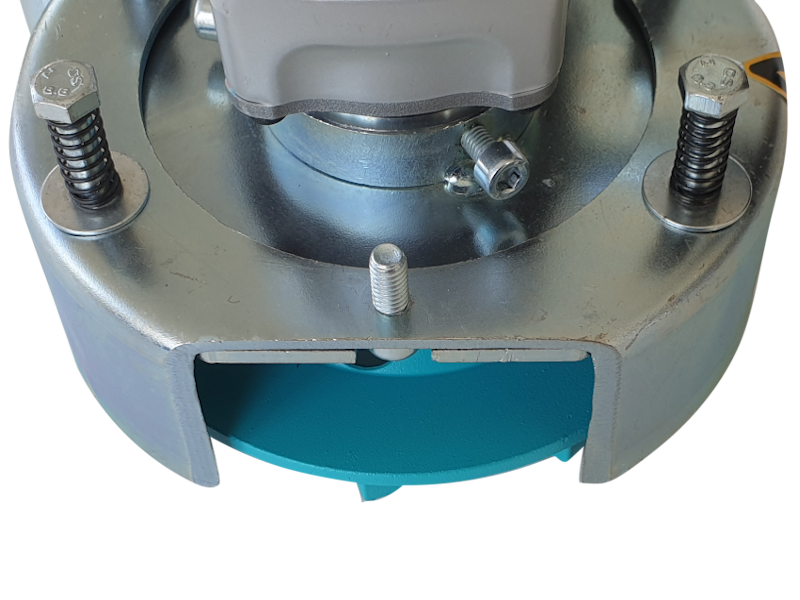

- Sturdy steel dust hood maximizes debris and dust capture if connected to industrial Vacuum

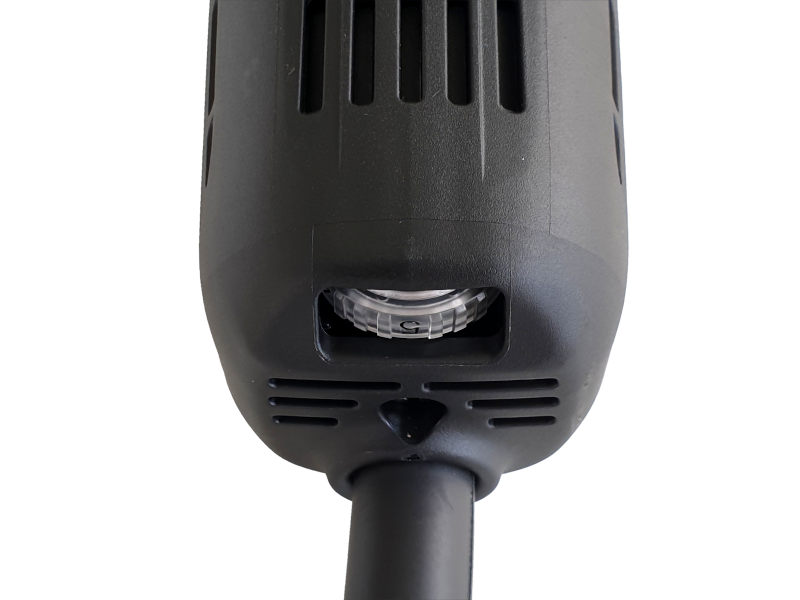

- Speed Regulation with 5 Levels

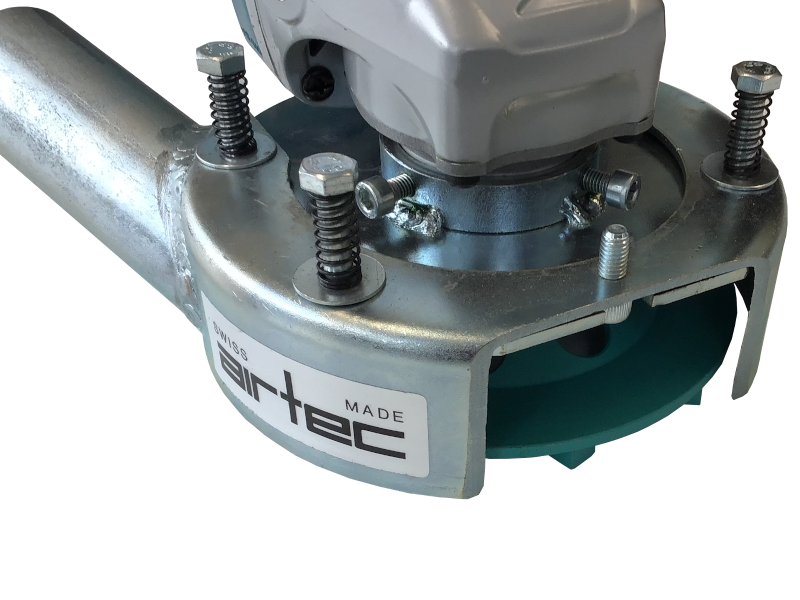

- Special hood opening enables easy Edge Grinding
OPTION
Balancer for easy overhead work. Wall cleaning and maintenance.
TECHNICAL DATA
| Power | 1.4 kW |
| Voltage | 230 V / 50 Hz, 16A |
| Motor Speed | 2’800 – 11’000 rpm (5 Levels) |
| Grinding Plate | 125 mm |
| Weight | 3.6 kg |
| Delivery content | Handheld Grinder BS-125-EL-001 |
| Special Dust Hood spring-actuated BS-125-103 | |
| Diamond Disc BS-125-045-1 | |
| Face Spanner Wrench BS-125-058 | |
| Operating manual and spare parts list |
