PRODUCT DESCRIPTION
The Roto-Tiger RT-2000 Mulit-Talent Scarifier is ideal for mid-sized surfaces. Wide range of tools for every purpose and in accordance with the required profile. Continuous depth settings from fine to coarse. Operating speed is about 30-50 qm, depending on the surface (Steel, Concrete, Stone, Wood etc.). Very Operator friendly and easy to transport!
- Low Vibrations 2,99m/s2
- Low Noise Level 1m: 89,4 dB(A)
FIELD OF APPLICATIONS
- Roughening of concrete surfaces and asphalt.
- Scabbling of concrete, asphalt, level differences, rubber deposits, plastic coatings and dirt crusts.
- Removing of old coats of paint, thermoplastic material, hard tops, tennis courts and sports grounds.

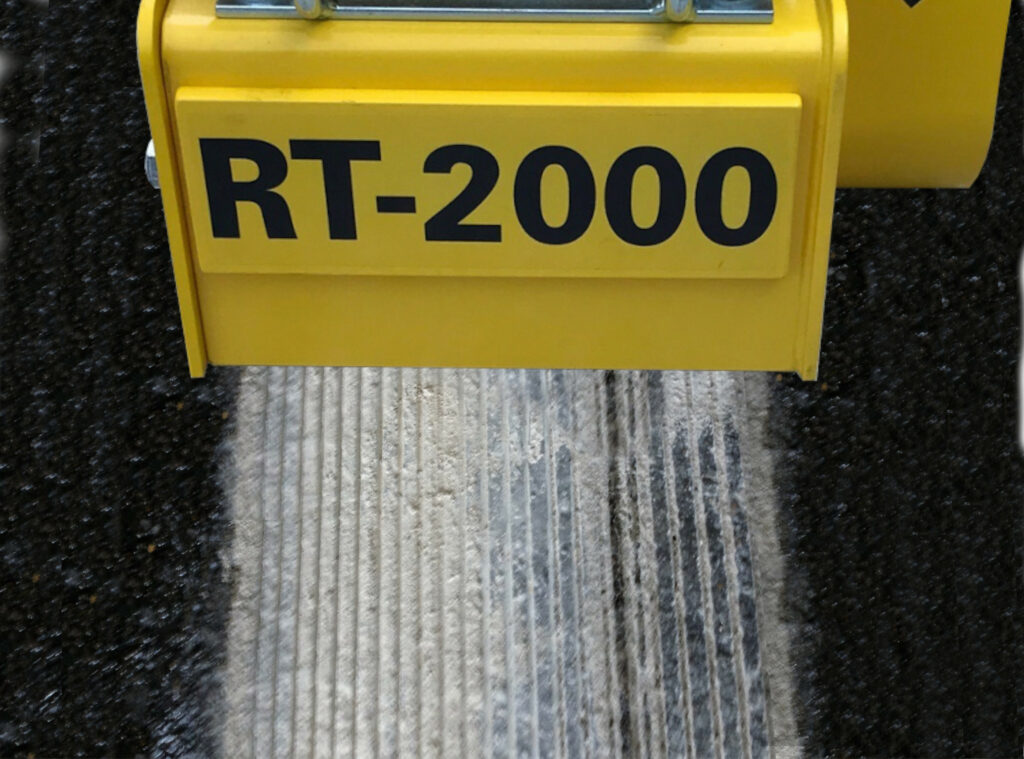

- Safety Grooving where it is Needed! Ramps, Barns, Walking Areas for People, Animals and Cars.
- Erasing Traffic Lines, Paint Stripes.
- Derusting of ship decks, tanks and containers.
- Cleaning of industrial floors, ramps, driveways, parking areas and cleaning out Cracks and Joints.
- Brushing Stone, Terrazzo, Tile Floors and Parquet.
- Cutting of seams in concrete and wood (grooving).
- Milling of asphalt surfaces.
- Chipping off rolling skin and incrustations.
- Renovation of flat roofs, terraces, wooden surfaces, ship decks and bridges.

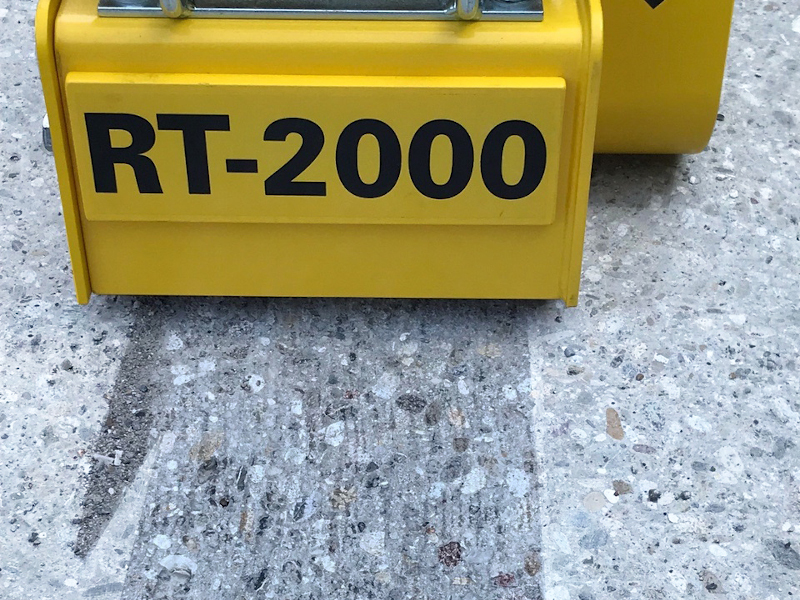

Surface Preparation, roughening of concrete.
Scabbling, scarifying, grooving, removal of coatings.

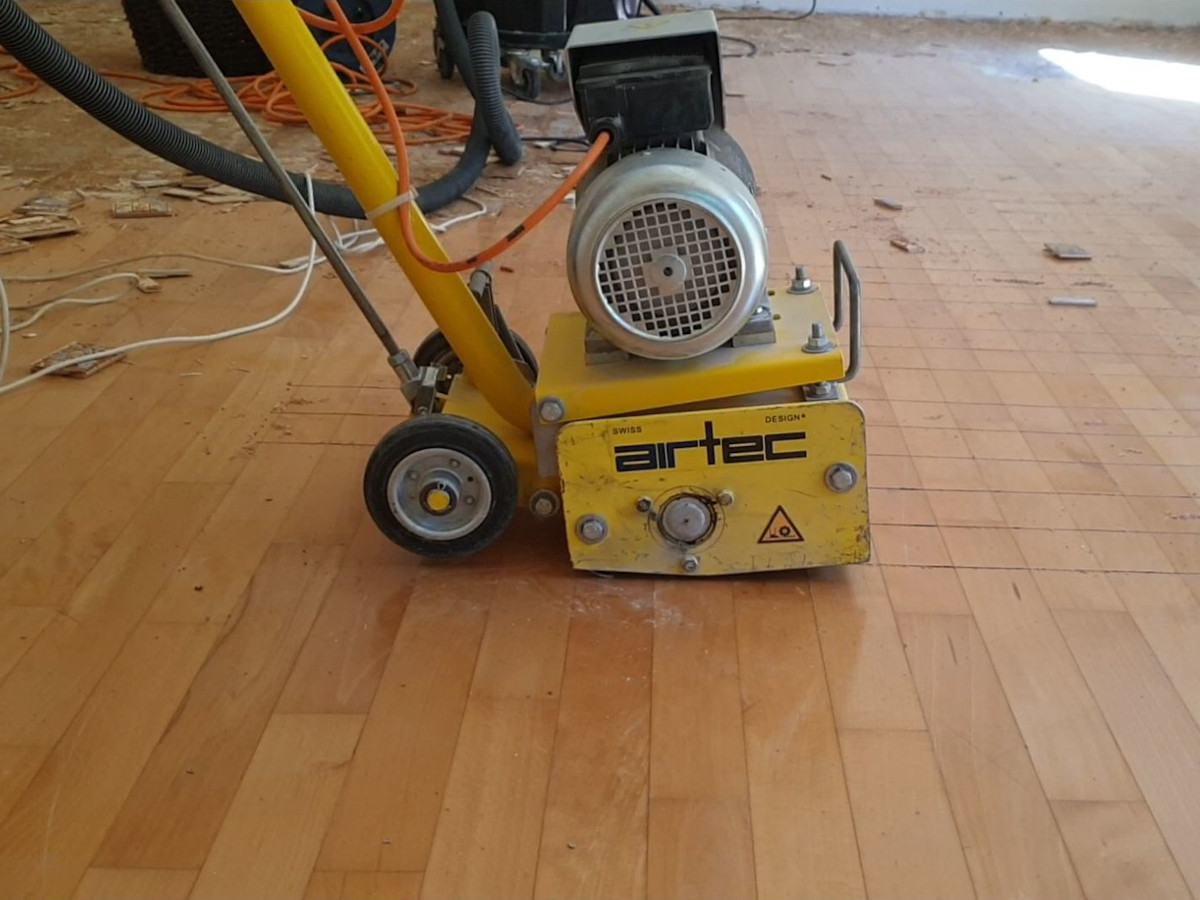

Cutting and preparing parquet for removal with a Floor-Stripper.
PROCEDURE
Rasping and milling wheels, loosely placed on a rotating work drum, thorough yet gentle rasping and milling off of adhesive, rubber, concrete slurry, uneven spots and old coatings. Hourly rates of 30-50 qm depending on the type of surface (steel, concrete, stone, wood or asphalt).
MACHINE ACCESSORIES
Standard RT-2000 drum
Article-No.: ES-200-570-1
Standard cutter: HMT-6.44
Article-No.: AT-999-650
FEATURES / CONSTRUCTION
- Strong, solid welded steel construction designed for robust use.
- With connection for industrial vacuum. EMERGENCY-OFF safety switch.
- Depth achievement and contact pressure of the rasping and milling wheels can be precisely adjusted with the rotary disk.
- Adjustable guiding grip allows work very close to the wall.
- Sturdily dimensioned rubber wheels provide a high degree of operating convenience.
Switch box Schneider
Schneider Electric motor with on/off button, emergency Stop function

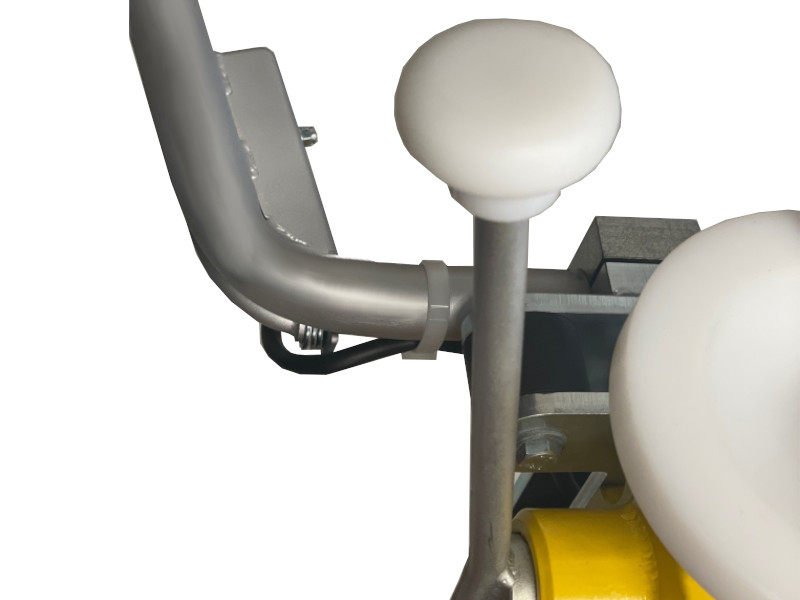

Drum control
Drum lever for quick and controlled lift-off

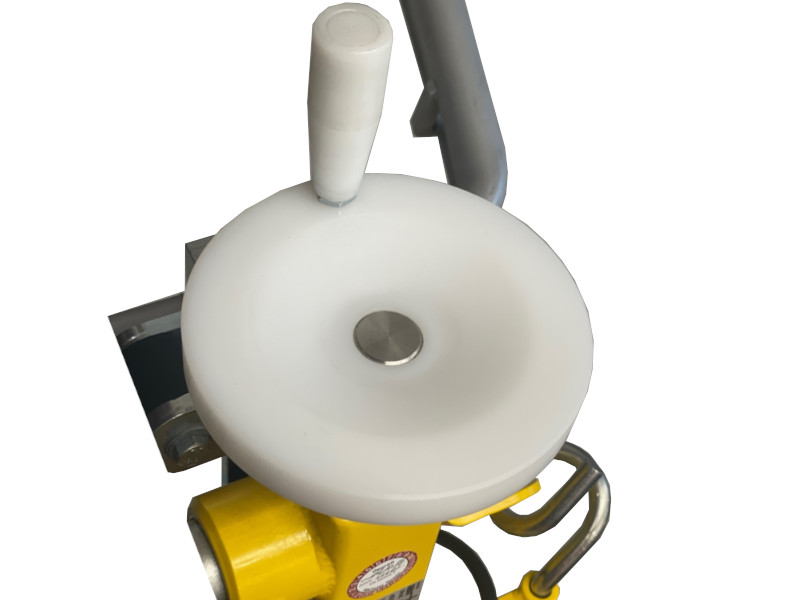

Adjustable height
Adjustable milling depth

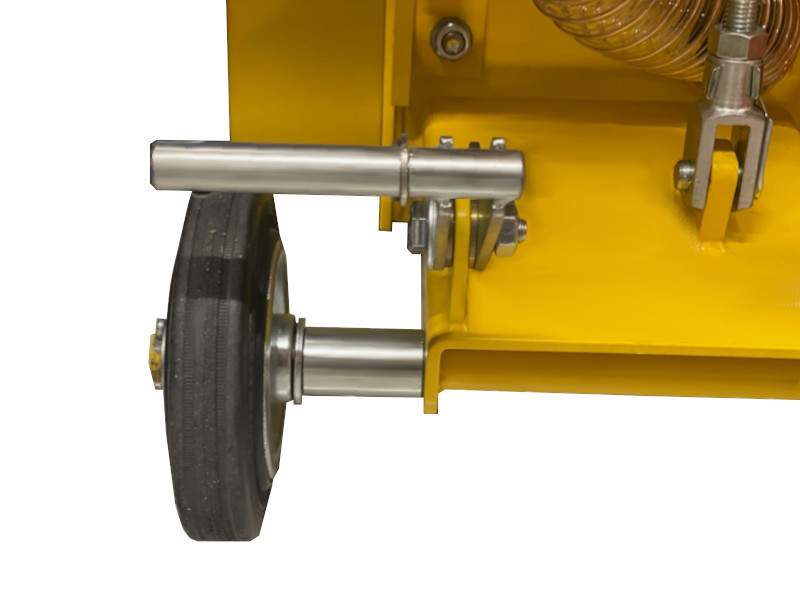

Wheel stopper
For a safe transport and good grip on sloping surfaces

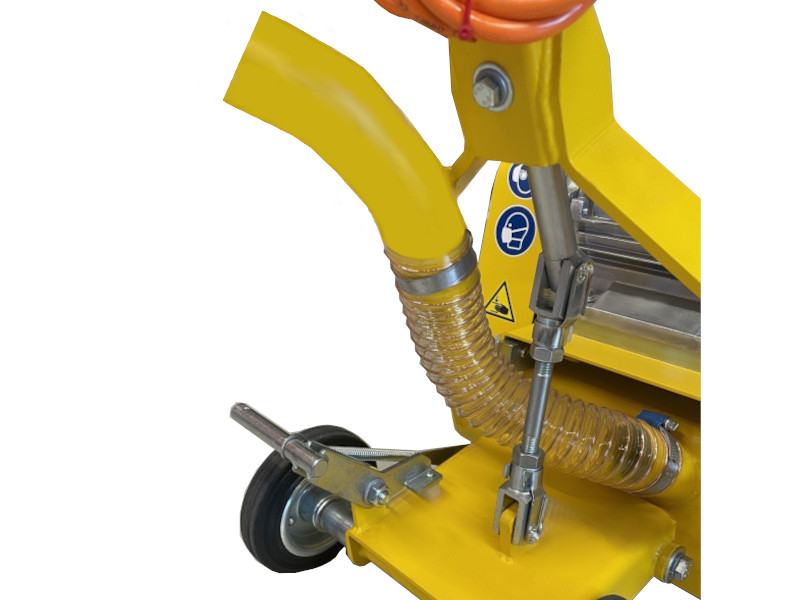

Suction port
Connection for industrial vacuum cleaner for low-dust work

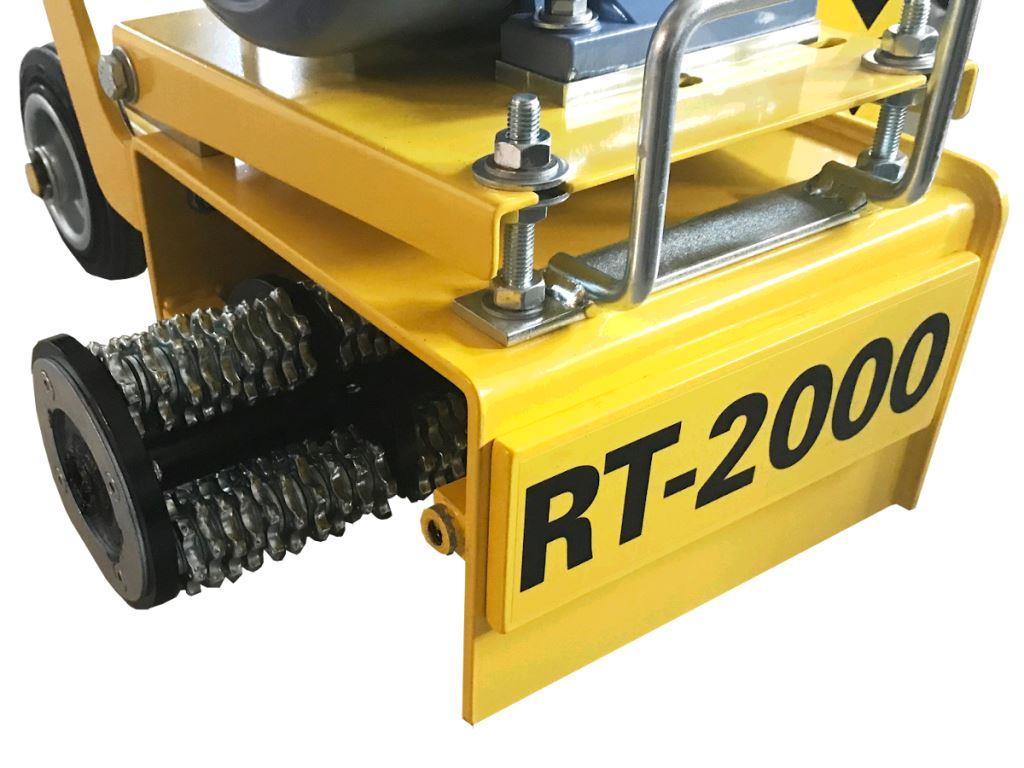

Quick-change system
For a quick and effortless drum change on site

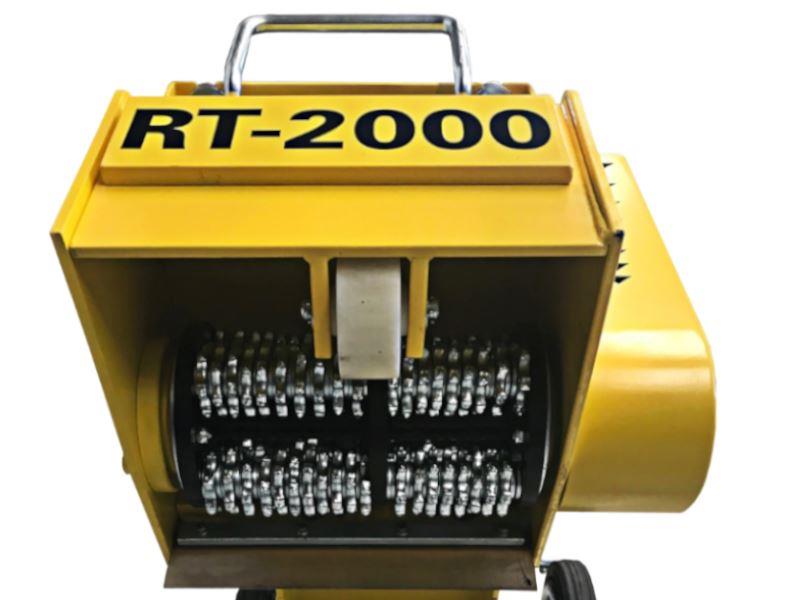

Working Drum
Wide range of different tools

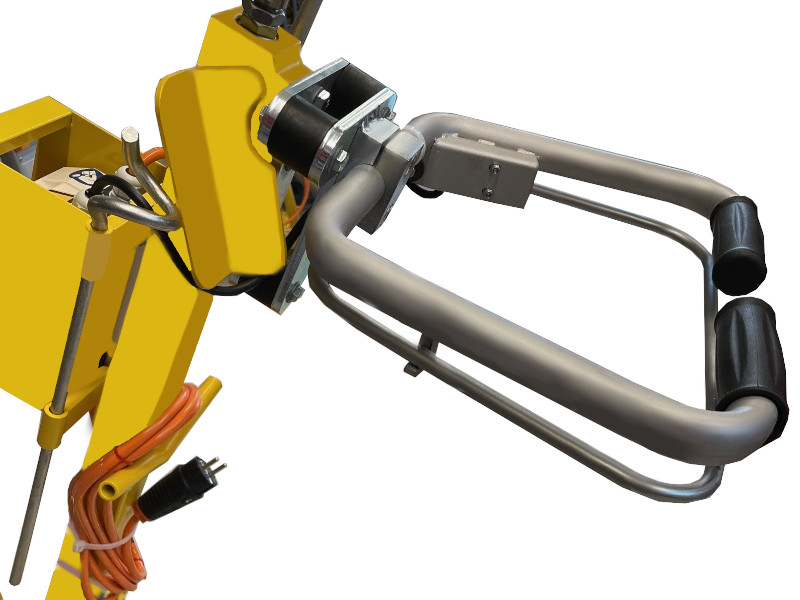

Handle
Anti-vibration handle with safety lever
OPTIONS
Additional Wheels
For more Balance and easy handling
Level adjustment
Compensates for height differences of up to 2 cm
AIRTEC Pointer
For the accurate removing of road markings
Shock Absorber
To avoid unwanted contacts and damages

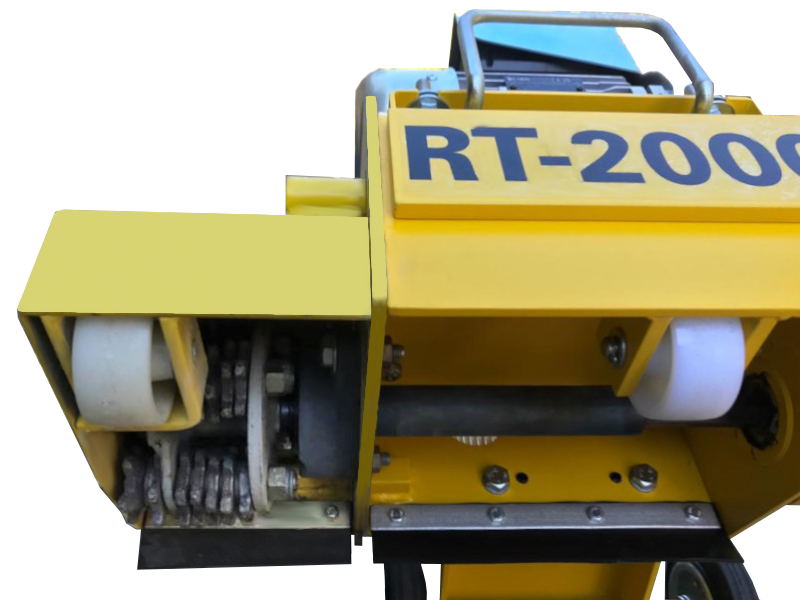

Edge Milling
AIRTEC special drum and attachment for working close to edges and walls
Edge Milling Drum
With 4 axles and 28 cutters
Edge Milling Unit
External edge milling machine
Edge Milling Unit
Internal edge milling machine
TECHNICAL DATA
| Variations | Motor/ Power | Voltage |
| Standard 230V | 2.2 kW | 230V / 50 Hz / 16A |
| Standard 400V | 2.2 kW | 400V / 50 Hz / 16A |
| Standard Petrol Engine | Honda Gasoline | 5 HP |
| All Machines | |
| Working Width | 200 mm |
| Dimensions (L x W x H) | 1100 x 360 x 1190 mm |
| Weight | 72 kg |
| Suction Tube Ø | 38 mm / 51 mm Tube |
| Basic equipment | RT-2000-EL and RT-2000-B with 1 standard drum (ES-200-570-1), all ES-200 Tools are compatible |
| equipped with 1 Set HMT-6.44 and spacers | |
| 5.5 metre power cable and plug | |
| Hexagon spanner | |
| Instruction manual and spare parts list | |
| Audit Log und Warranty Certificate |
