Beschreibung
PRODUCT DESCRIPTION
Powerful, efficient roughening and cleaning machine for large-area tasks. Wide range of tools for versatile use. For hourly rates of up to 120m², depending on the nature of the surface.
FIELD OF APPLICATIONS
- Abrasion and Grinding of concrete, asphalt, markings, level differences, rubber deposits, plastic coatings and dirt crusts.

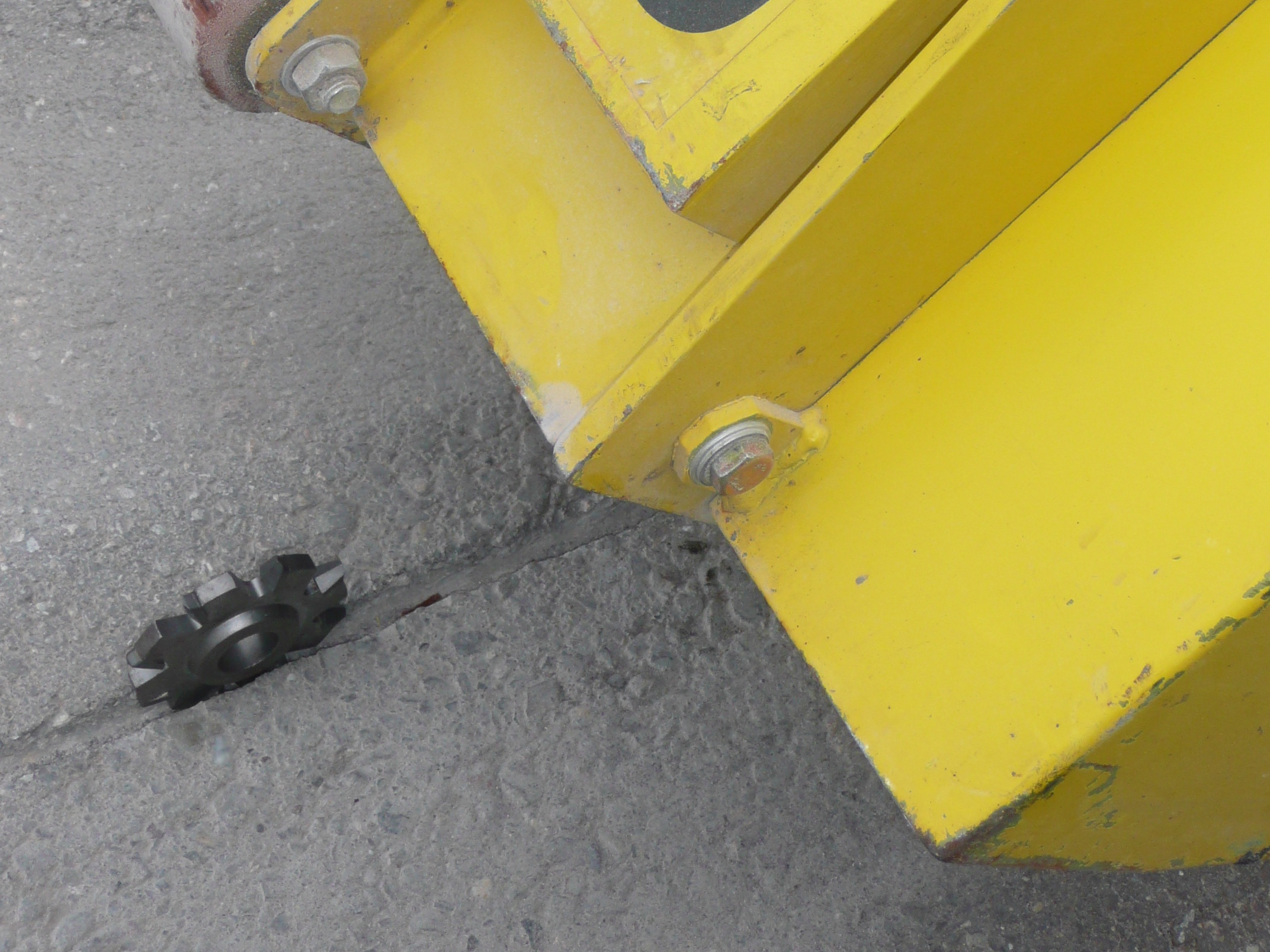

- Cutting of seams in concrete (grooving). Roughening of concrete surfaces and concrete roads
Milling of asphalt surfaces. - Removal of traffic Lines, old paint layers, thermoplastic material and hard tops.
- De-rusting of ship decks.
- Chipping off rolling skin and incrustations.
- Cleaning of industrial floors, ramps, driveways and parking areas.

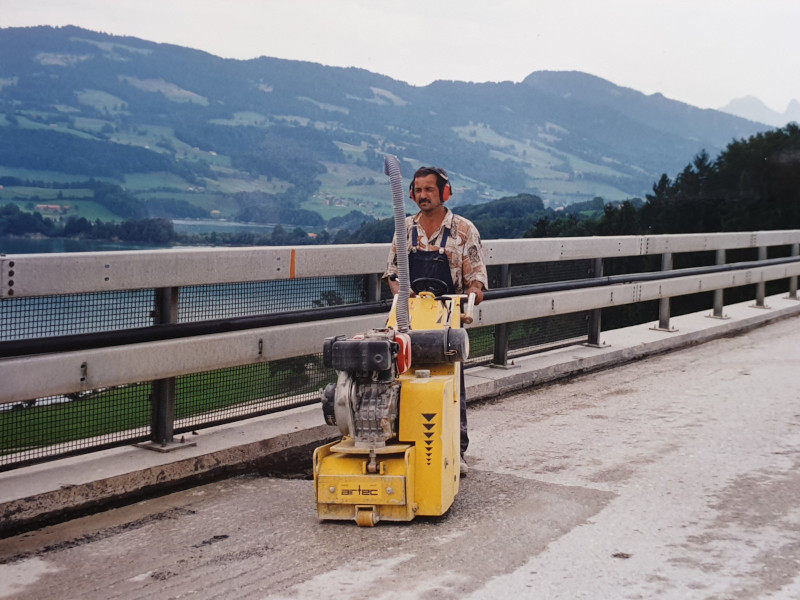

- Renovation of flat roofs, terraces and bridges.
- Roughening of Streets and Runways.
- Underlayment Preparation
Levelling and rectifying uneven surfaces
PROCEDURE

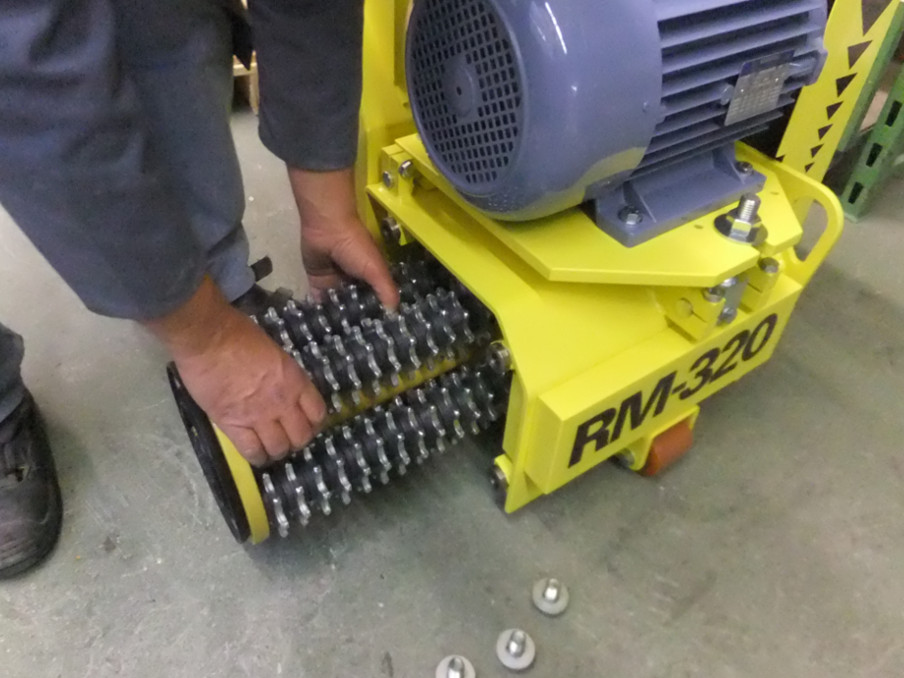

Rasping and milling wheels, loosely placed on a rotating work drum, thorough yet gentle rasping and milling of adhesive, rubber, concrete slurry, roughness and old coatings. HMT-8-PIC milling wheels – 1st quality milling wheel with 8 carbide pins for particularly hard use. Removal rate of up to 8 mm in a single step. No Damage to substrate. Accurate depth control.
MACHINE ACCESSORIES

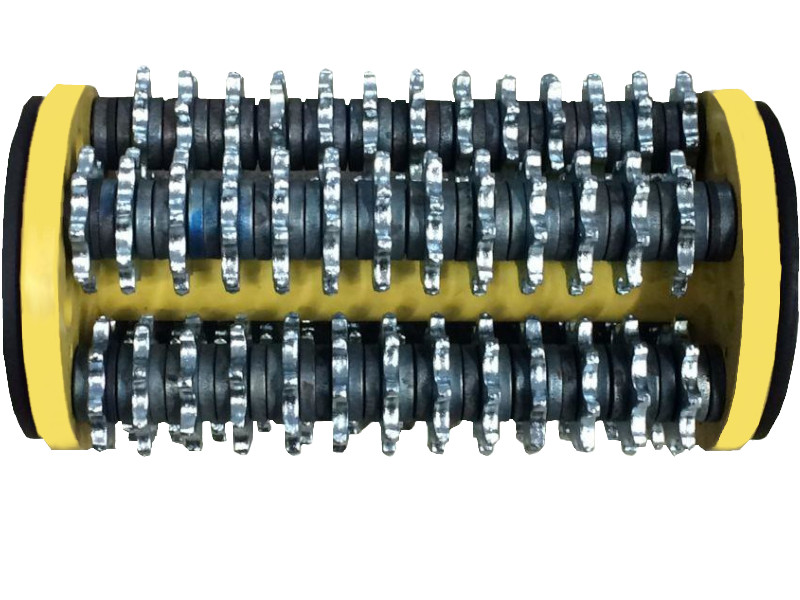

Standard RM-320 drum
Article-No.: RM-320-9062
Standard cutter: HMT-8.200 PIC
Article-No.: AT-999-1225
FEATURES / CONSTRUCTION
- Strong, solid welded steel construction designed for robust use.
- Adjustable guiding grip allows work very close to the wall.
- Power transfer with toothed belts.
Direction of rotation and polarity reversing switch. - The division of the milling wheels (close or wide) influences the profile of the surface.
- Highly wear resistant For roughening, abrading, leveling as well as grooving of concrete surfaces.

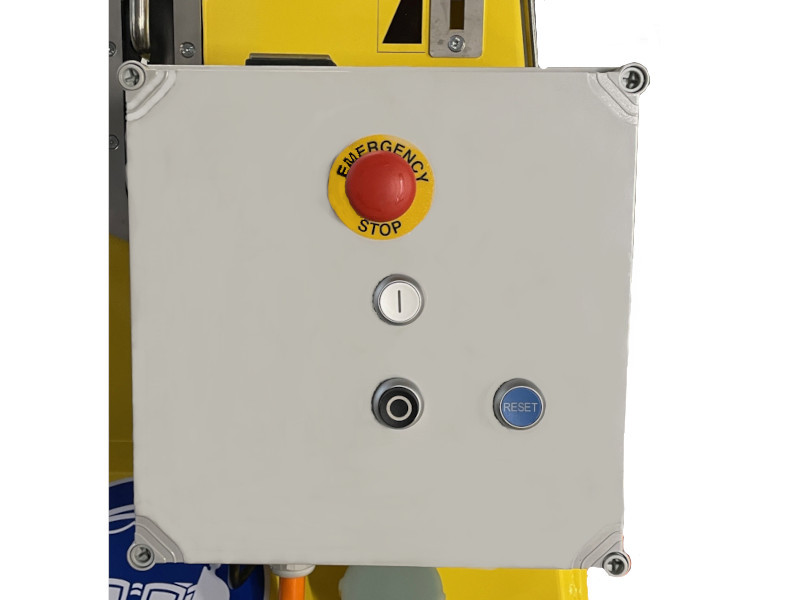

Switch box
Electric motor with on/off button, emergency Stop function

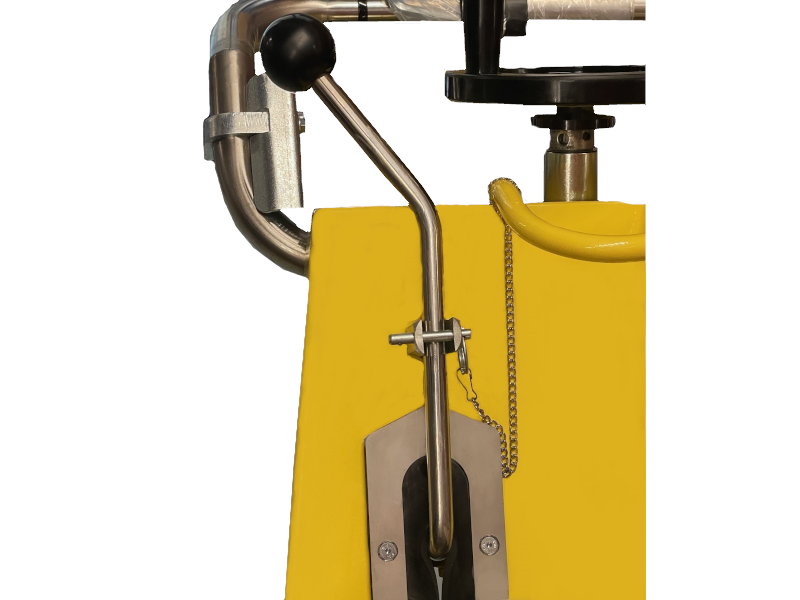

Drum control
Drum lever for quick and controlled lift-off
Adjustable height
Adjustable milling depth
Speed control
Forwards and backwards, infinitely adjustable
Differential
Precise adherence to the milling direction and high manoeuvrability
Suction port
Connection for industrial vacuum cleaner for low-dust work
Drive unit
Hydrostatic drive, fully encapsulated

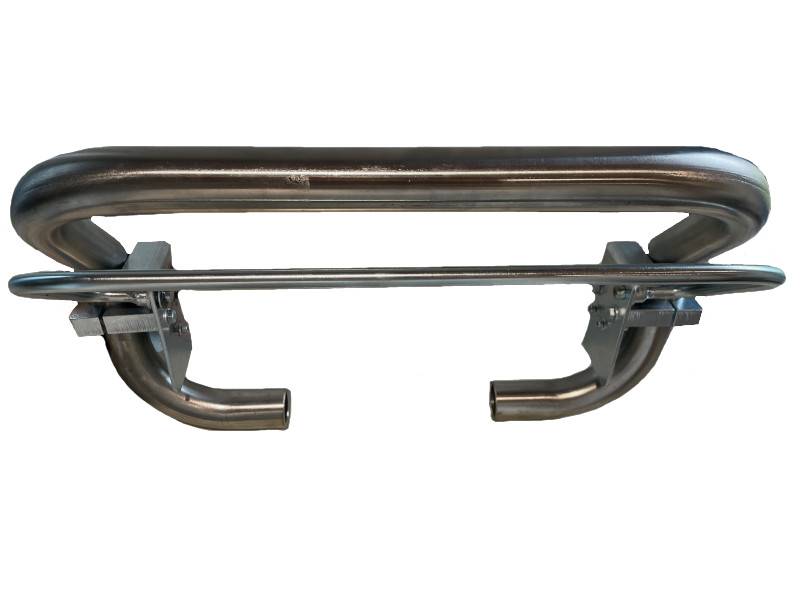

Two-hand grip
User protection with optimum safety thanks to emergency stop function
OPTION
Add-on
RM-320 add-on Riding Car for easy working on large areas.
TECHNICAL DATA
| Variations | Motor/ Power | Voltage |
| Standard 400V | 11 kW | 400V / 50 Hz / 32A |
| Standard 400V | 15 kW | 400V / 50 Hz / 32A |
| Standard petrol engine | 20 HP | Honda Gasoline, Euro-2 |
| All Machines | |
| Working Width | 320 mm |
| Dimensions (L x W x H) | 1400 x 600 x 1200 mm |
| Weight | 330 – 339 kg |
| Suction Tube Ø | 51 mm / 75 mm Tube |
| Traction drive | hydrostatic, self-propelled |

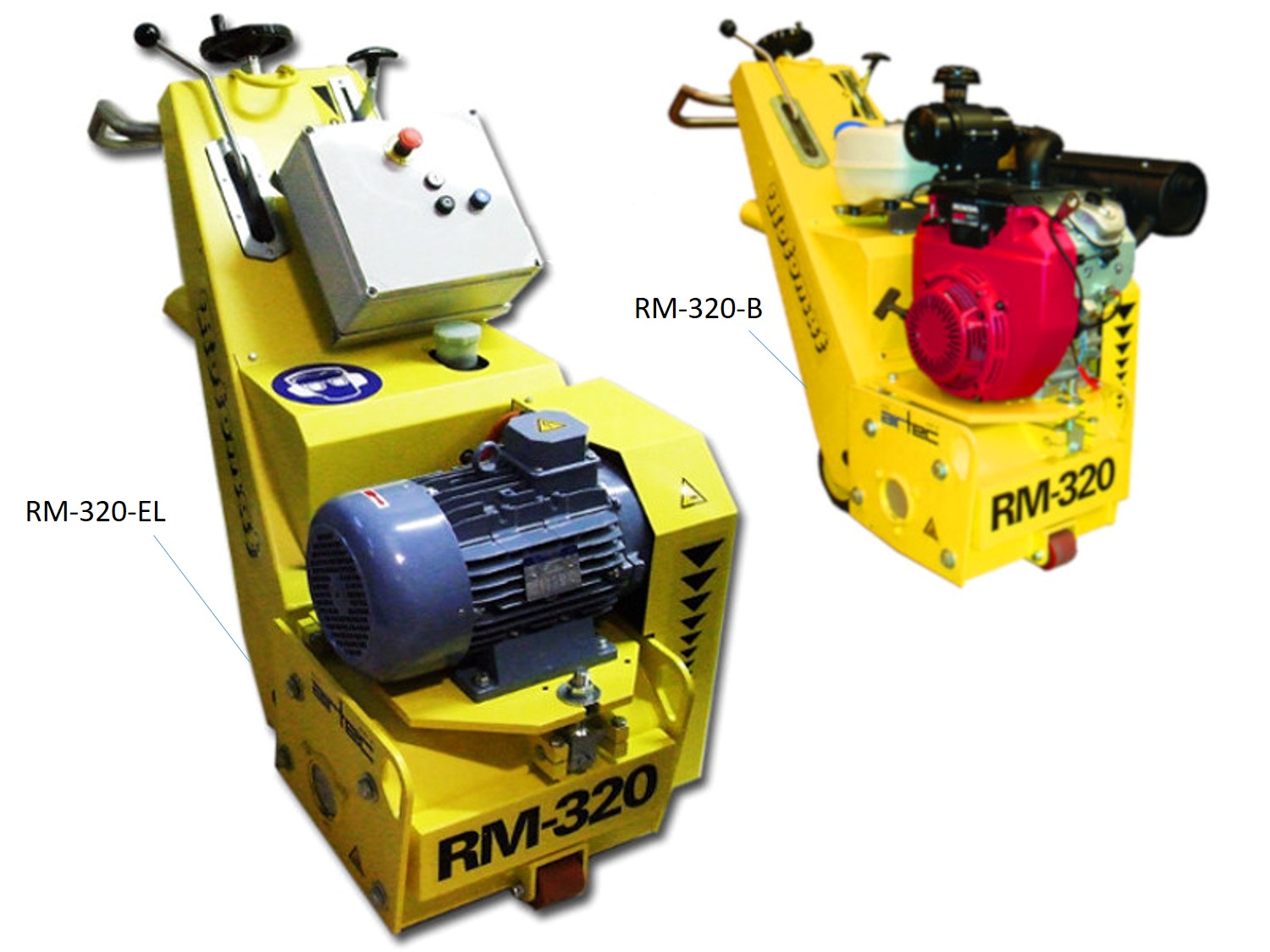

| Basic equipment | RM-320-EL and RM-320-B with 1 Standard Drum (RM-320-9062) |
| equipped with 1 Set HMT-8-PIC and spacers | |
| 5 metre power cable and plug | |
| Hexagon spanner | |
| Instruction manual and spare parts list | |
| Audit Log und Warranty Certificate |
