PRODUCT DESCRIPTION
Diamond Concrete Shaver/Rectifier with hydrostatic Drive, self-propelled.
FIELD OF APPLICATIONS
- Renovation of industrial floors
- Removal of coatings, epoxy resin screed

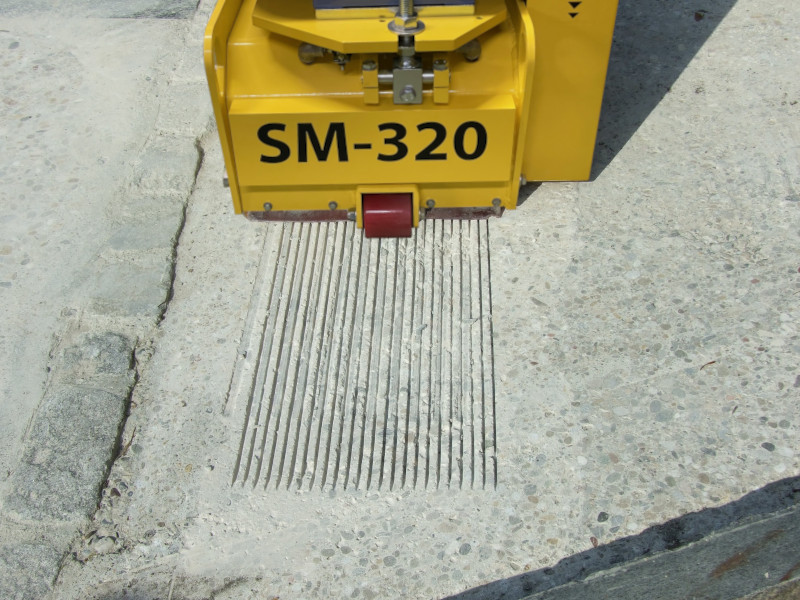

- Grooving of concrete for anti-slip on ramps and side-walks
- Profiling of a sound floor for coating
- Reducing levels correcting concrete joints
- Lippage removal
- Tolerance works
- Eliminate trip hazards
Precision surface correction on concrete floor
Adjustable cutting depth
PROCEDURE

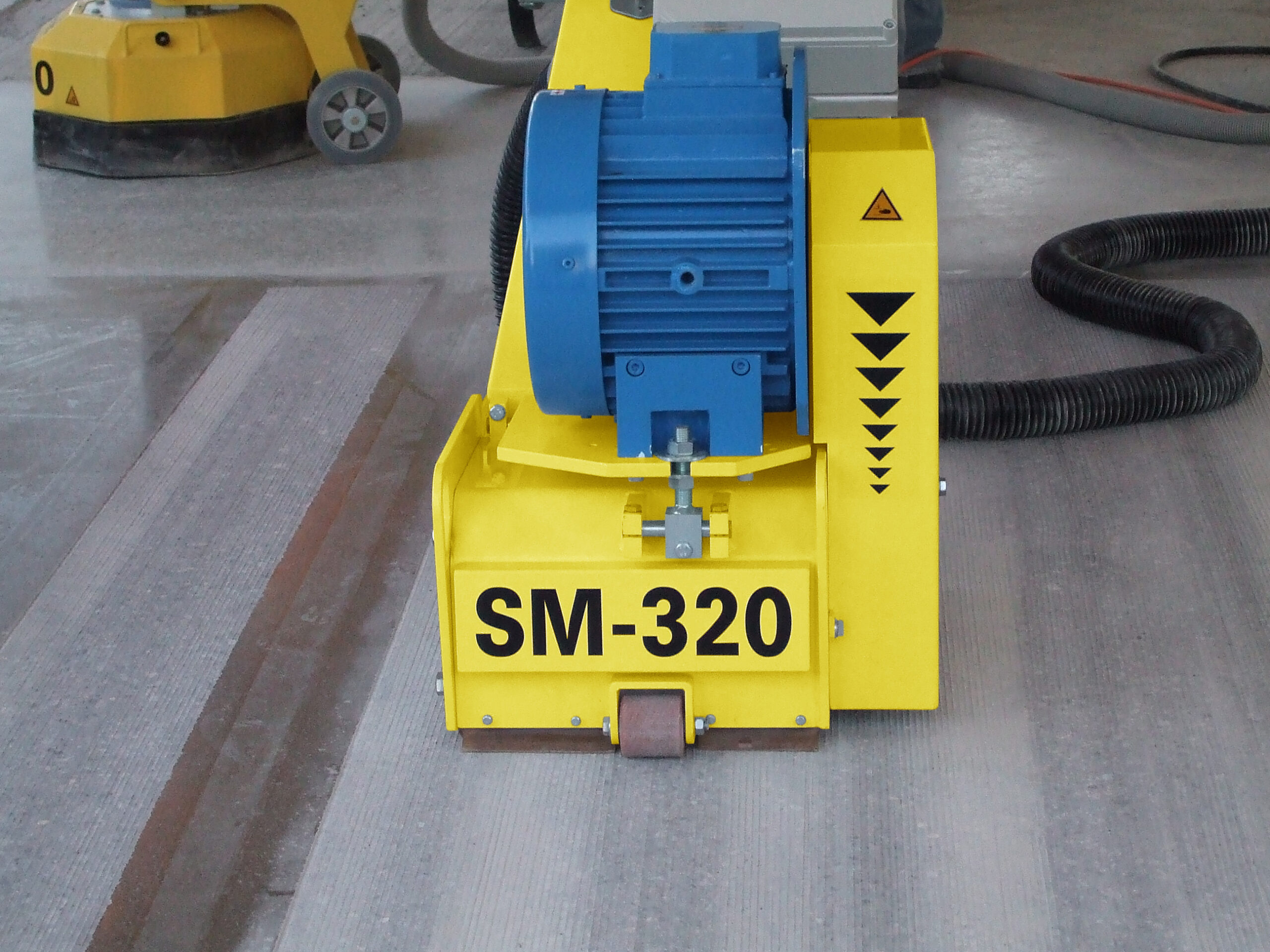

The Shave-Master SM-320 works on the same principle as the RM-320. The drum is enclosed in the main body of the machine and rotates at high speed. The difference is that the drum is made up of a number of “Diamond Blades” which produce fast and efficient results on different surfaces.
MACHINE ACCESSORIES

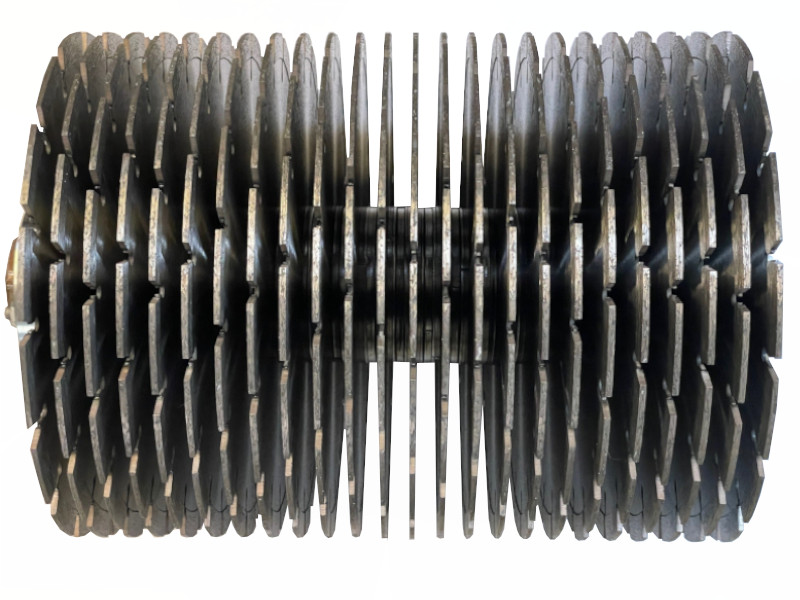

Standard SM-320 drum
Article-No.: SM-320-500

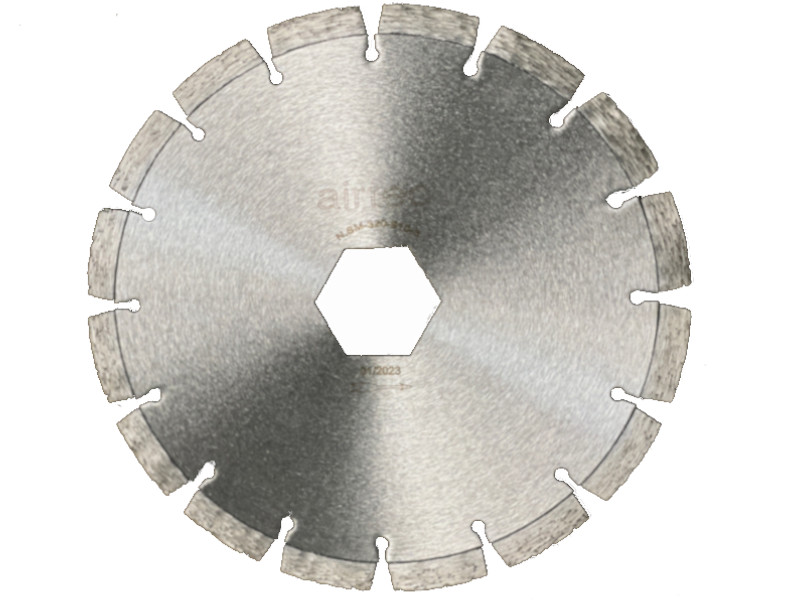

Standard Diamond blade 3mm
Article-No.: SM-320-910-3

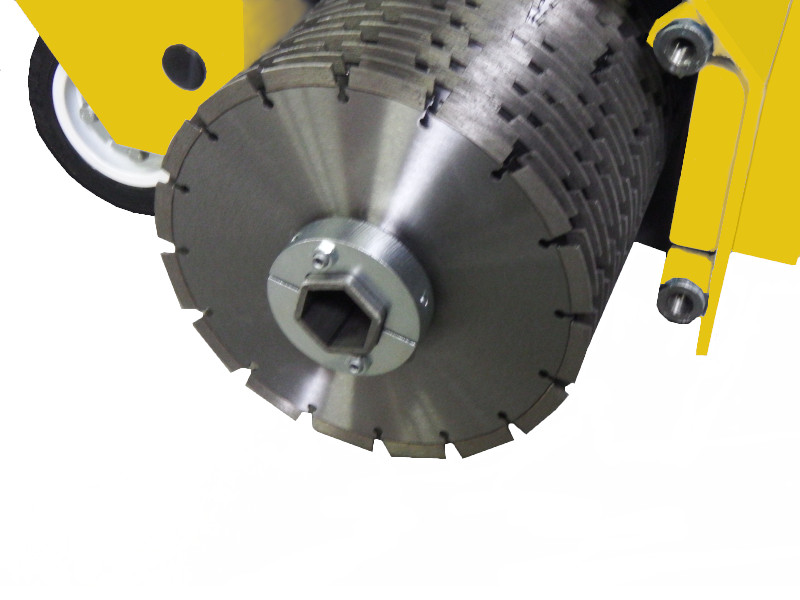

According to the job the drums can be assembled in different ways. With compact assembling whole layers can be removed. Fully adjustable depth controls with Diamond blades Ø 250 mm up to approx. 12 mm (1/2″) deep. And with Diamond Blades Ø 275 mm up to approx. 25 mm (1″) deep.
FEATURES / CONSTRUCTION
- Heavy duty welded steel construction.
- Self-propelled hydrostatic power Forward and Reverse drive.
- Integral dust control outlet
- Anti-Vibration handels
Switch box
Electric motor with on/off button, emergency Stop function
Drum control
Drum lever for quick and controlled lift-off
Adjustable height
Adjustable milling depth
Speed control
Forwards and backwards, infinitely adjustable
Differential
Precise adherence to the milling direction and high manoeuvrability
Suction port
Connection for industrial vacuum cleaner for low-dust work
Drive unit
Hydrostatic drive, fully encapsulated
Two-hand grip
User protection with optimum safety thanks to emergency stop function
OPTIONS

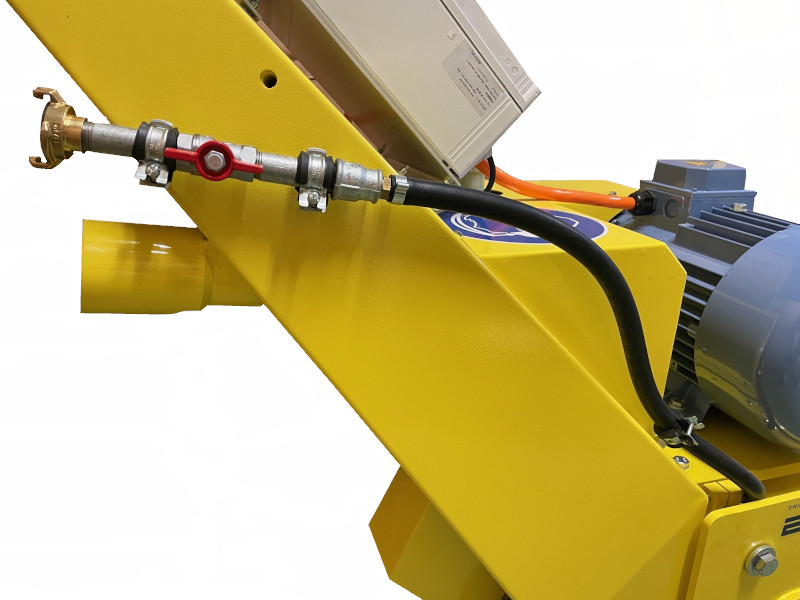

Water supply
The water supply cools the drum and reduces dust
Add-on
SM-320 with separate seat for long-term use
TECHNICAL DATA
| Variations | Motor/ Power | Voltage |
| Standard 400V | 11 kW | 400V / 50 Hz / 32A |
| Standard 400V | 15 kW | 400V / 50 Hz / 32A |
| Standard 440V | 18 kW | 440V / 60 Hz / 32A |
| Standard petrol engine | Honda Gasoline | 20 HP |
| All Machines | |
| Working Width | 320 mm |
| Dimensions (L x W x H) | 1400 x 600 x 1200 mm |
| Weight | 330 – 339 kg |
| Suction Tube Ø | 51 mm / 75 mm Tube |
| Traction drive | self-propelled, hydrostatic |
| Basic equipment | SM-320-EL and SM-320-B with 1 standard Drum (SM-320-500) |
| equipped with 24 Diamond Discs (3 mm) and spacers | |
| 5 metre power cable and plug | |
| Hexagon spanner | |
| Instruction manual and spare parts list | |
| Audit Log und Warranty Certificate |
